L1200/L1500/L3000 Series LED Optix Linear Light Indirect/Direct 38-96W

What is the L1200/L1500/L3000 Series LED Optix Linear Light and where is it specified?

At XHLWX (led-project-light.com), a Custom Indoor LED Lighting Manufacturer based in China, we present the L1200/L1500/L3000 Optix Series, an architectural-grade linear lighting system designed for sophisticated commercial interiors. This luminaire provides a balanced distribution of direct and indirect light, creating comfortable, visually appealing, and highly functional environments. The direct component delivers controlled, low-glare task illumination, while the indirect component washes ceilings with soft, diffuse light, enhancing the sense of space and reducing the "cave effect" common in office settings. Engineered for performance and aesthetic purity, the Optix series is specified by architects, lighting designers, and contractors for high-end offices, educational facilities, and premium retail spaces across the EU, US, and Middle East. Its slim profile, crafted from high-grade 6063 extruded aluminium with a premium matt white or black finish, ensures seamless integration into modern architectural schemes.

Photometric and electrical specification

The Optix Series is built to meet stringent European and American performance standards. All photometric data is verified through goniophotometer testing, and full data files are available for lighting design software.

Parameter	Specification	Standard	Notes
Optics - CCT	2700K, 3000K, 4000K, 5000K, 6500K	ANSI C78.377	Tunable White (TW) option available. SDCM < 3 for superior color consistency across fixtures.
Optics - Color Rendering	CRI >80, CRI >90, CRI >95	CIE 13.3-1995	High-fidelity options with TM-30 Rf >85, Rg >95 available for color-critical applications.
Optics - Glare Control	UGR < 19	EN 12464-1	Achieved via precision lens and reflector system. Essential for VDT workstations and classrooms.
Optics - Beam Angle	Downlight: 60° / Uplight: 140°	N/A	Provides focused task light (direct) and wide, diffuse ambient illumination (indirect).
Electrical - Efficacy	100-150 lm/W (System)	LM-79-08	Varies by CCT, CRI, and power setting. LED efficacy is rated at over 150 lm/W.
Electrical - Power	38W (L1200), 48W (L1500), 96W (L3000)	N/A	Power factor >0.95. Custom wattages available for project-specific requirements.
Components - Driver	BOKE (Standard), Tridonic, Mean Well, Osram	N/A	DALI, 0-10V, and non-dimming options. All drivers carry a 5-year warranty.
Components - LED Chip	Bridgelux, Samsung, Osram	LM-80	L80B10 > 50,000 hours, ensuring long-term performance and minimal light depreciation.

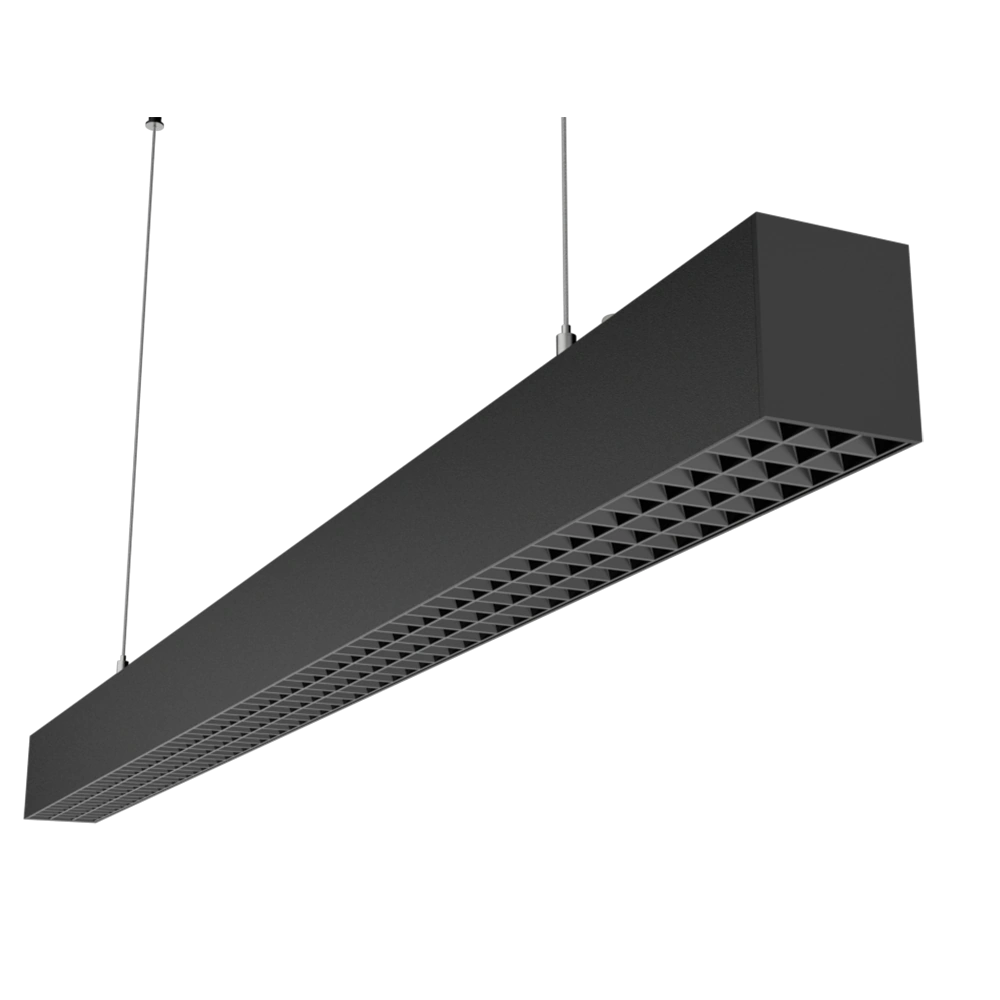

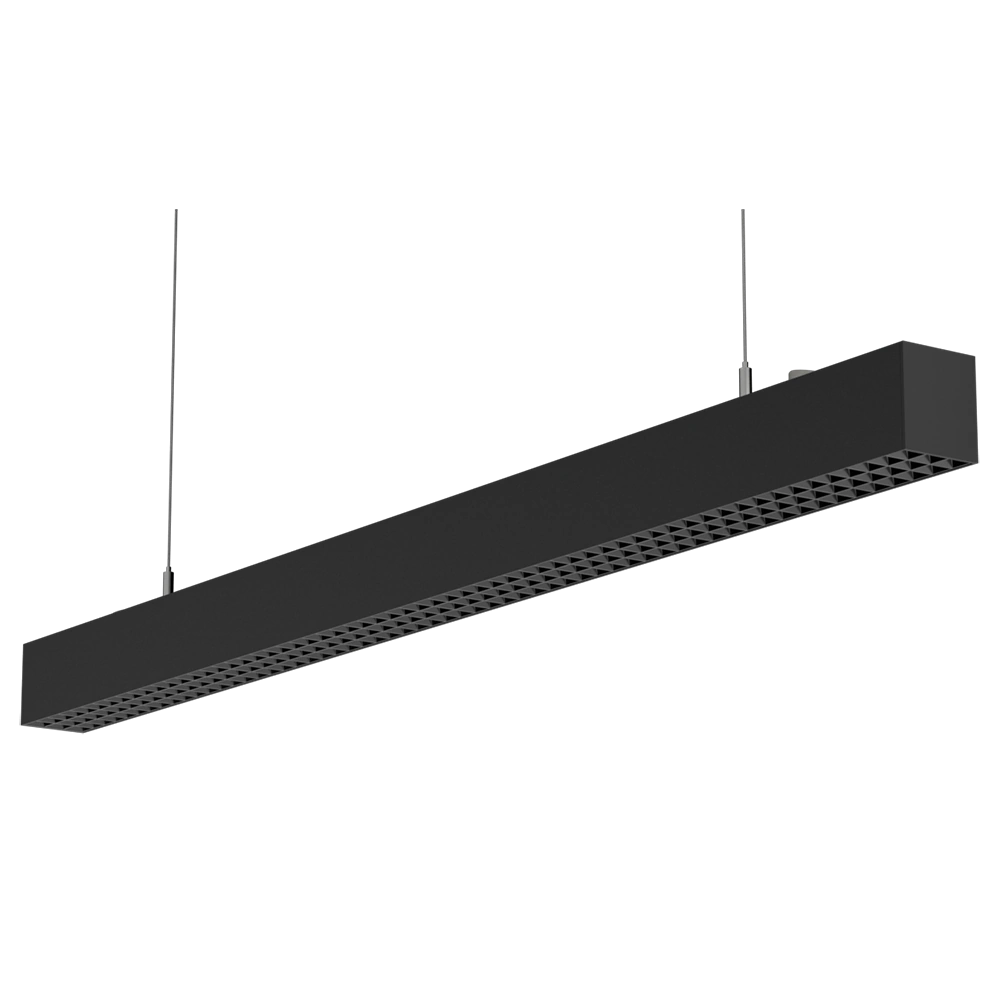

Housing - Construction	Extruded 6063 Aluminium Body	N/A	Finishes: Matt White (RAL9016), Matt Black (RAL9005). Custom RAL colors available.
Housing - IP Rating	IP20	IEC 60529	Designed for indoor, dry locations such as offices, hallways, and retail interiors.
Certifications	CE, RoHS, ErP	EU Directives	Manufactured in an ISO9001:2015 certified facility, ensuring consistent quality control.

Which spaces is it designed for?

The Optix Series is a versatile solution for specifiers targeting human-centric and high-performance lighting designs in commercial spaces.

How does this fixture support modern office design and WELL Building Standards?

This luminaire directly supports key WELL Building Standard criteria for visual comfort. The combination of direct and indirect lighting creates a layered, comfortable environment that reduces eye strain. The specialized optics ensure a UGR of less than 19, a strict requirement for spaces with computer screens. With options for Tunable White (2700K-6500K), the system can be programmed to support circadian rhythms, enhancing employee well-being and productivity. Its minimalist aesthetic complements contemporary office interiors without creating visual clutter.

What makes the Optix Series suitable for retail and showroom applications?

For retail, color is paramount. The Optix Series is available with high CRI (90+) and excellent TM-30 metrics, ensuring that merchandise colors are rendered accurately and vividly. The direct 60° beam can be used to achieve target vertical and horizontal illuminance levels of 500-750 lux on displays, while the indirect 140° component creates a welcoming, high-end ambient atmosphere. DALI control allows for the creation of dynamic scenes, adapting the lighting from day to night or for special promotions, enhancing the customer experience.

Can the Optix Linear Light be used in educational or institutional environments?

Absolutely. The Optix Series is an ideal choice for classrooms, libraries, and university common areas. Its robust 6063 aluminium construction ensures durability in high-traffic settings. The UGR<19 performance is critical for meeting the EN 12464-1 standard for educational spaces, preventing glare on whiteboards and student laptops. The balanced light distribution provides the recommended 500 lux on desks while creating a bright, stimulating learning environment, backed by a comprehensive 5-year warranty.

Installation, control and compliance (DALI-2 / Casambi / 0-10V, CE / RoHS / ErP)

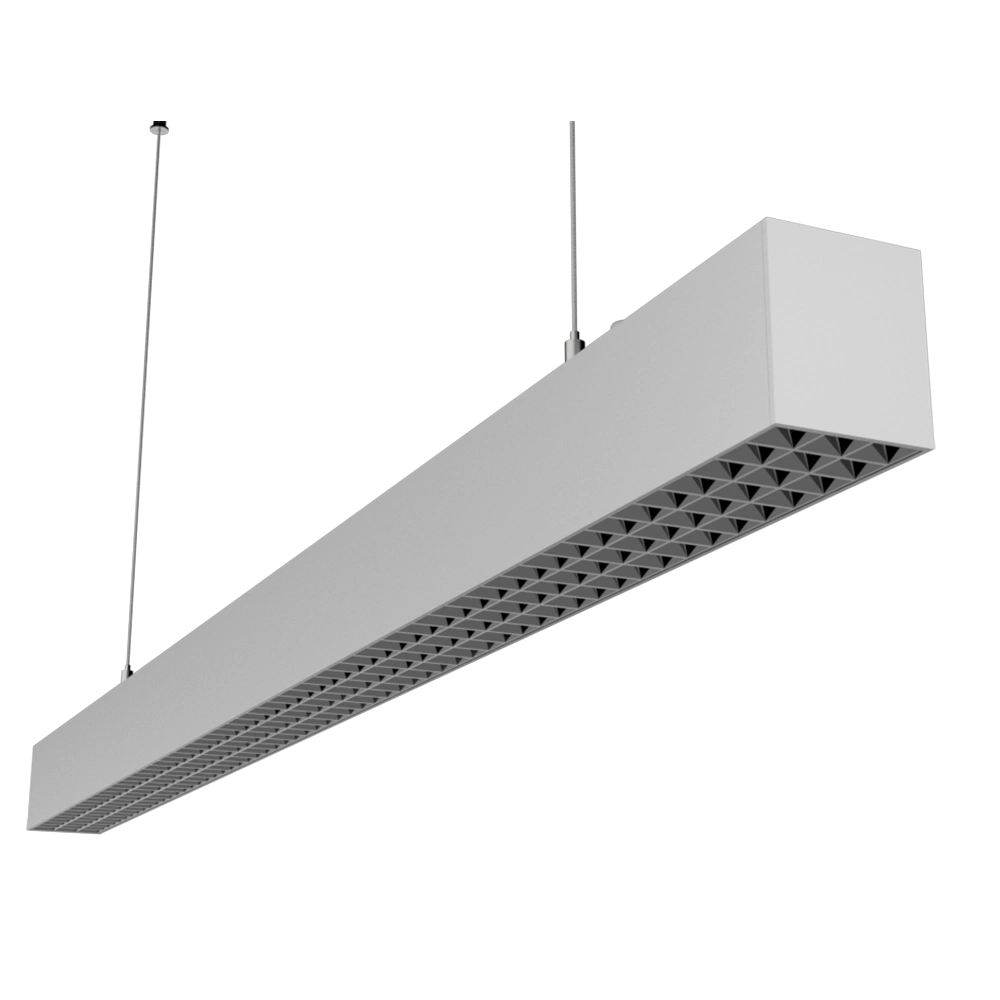

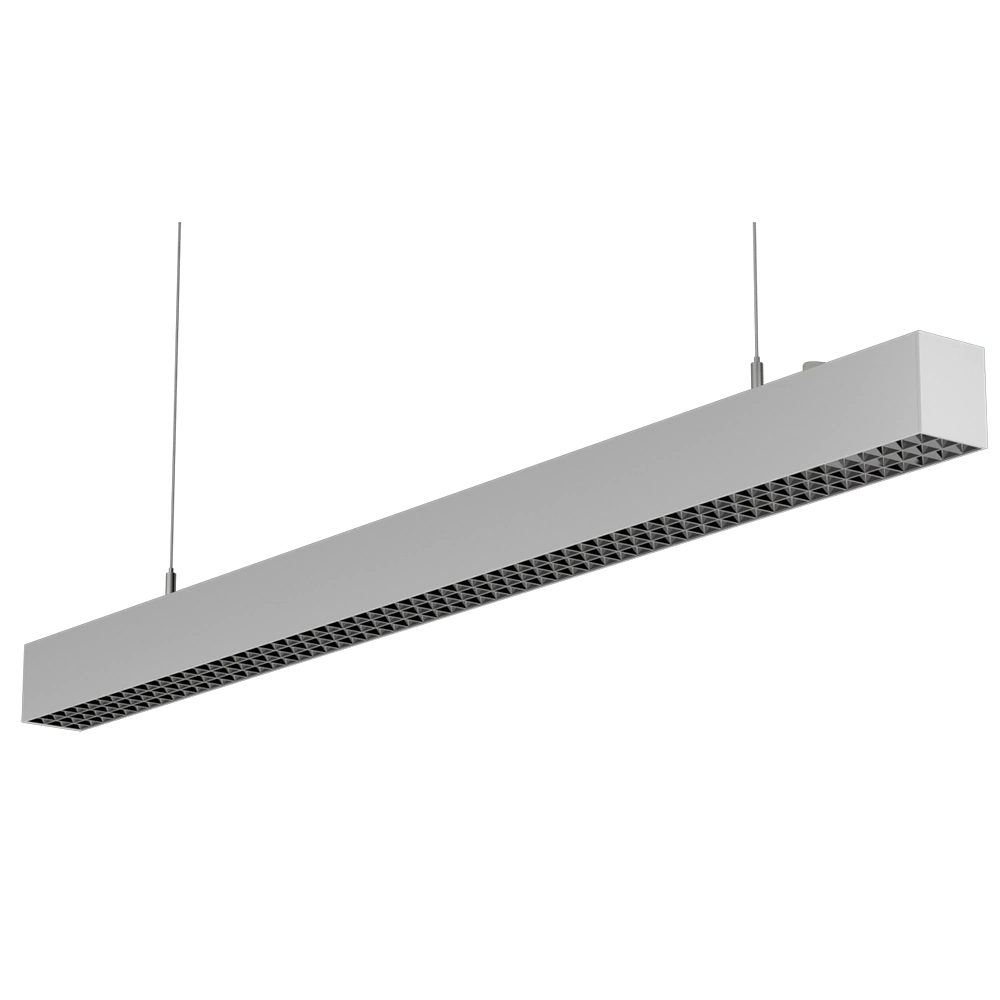

The Optix Series is designed for straightforward installation as either a pendant-suspended or surface-mounted luminaire. We provide complete suspension kits with adjustable aircraft cables and a sleek ceiling canopy. For control, the system is highly flexible. We offer DALI-2 drivers for full digital addressability and integration into building management systems, as well as 0-10V analog dimming for simpler installations. Wireless control via Casambi Bluetooth mesh can also be integrated upon request. Full IES and LDT photometric files are available for seamless integration into your DIALux or Relux lighting design project, allowing for precise simulation and verification. The entire series is compliant with European standards, holding CE, RoHS, and ErP certifications.

Customisation, MOQ and lead time

As a lighting manufacturer, we specialize in tailoring products to meet specific project needs. The Optix Series can be customized in several ways:

• Length: While standard lengths are 1200mm, 1500mm, and 3000mm, we can manufacture continuous runs or custom lengths to fit your exact architectural dimensions.
• Finish: Beyond our standard matt white and black, we offer custom powder coating to any RAL color to match brand guidelines or interior palettes.
• Sensors: Integrated occupancy and daylight sensors can be factory-fitted for enhanced energy savings.

Our standard Minimum Order Quantity (MOQ) for the Optix Series is 50 units. The typical production lead time for standard configurations is 20-30 working days. Custom orders may require additional time for engineering and material procurement.

Frequently Asked Questions

Q: What is the standard warranty and expected lifetime of the Optix Linear Light?

A: The Optix Series comes with a comprehensive 5-year warranty covering the entire luminaire, including the LED modules and driver. The high-quality LED chips used are rated for L80B10 at over 50,000 hours, meaning that after 50,000 hours of operation, 90% of the LEDs will still maintain at least 80% of their initial lumen output.

Q: Can the direct and indirect lighting components be controlled separately?

A: Yes. We can configure the luminaire with a dual-channel DALI driver that provides two separate addresses for the uplight and downlight circuits. This allows for independent dimming and control of the 60° direct and 140° indirect components, enabling sophisticated scene-setting. For example, a boardroom could have 500 lux for a meeting and be dimmed to 150 lux with only uplight active for presentations.

Q: What is the typical UGR rating, and is it suitable for VDT workstations?

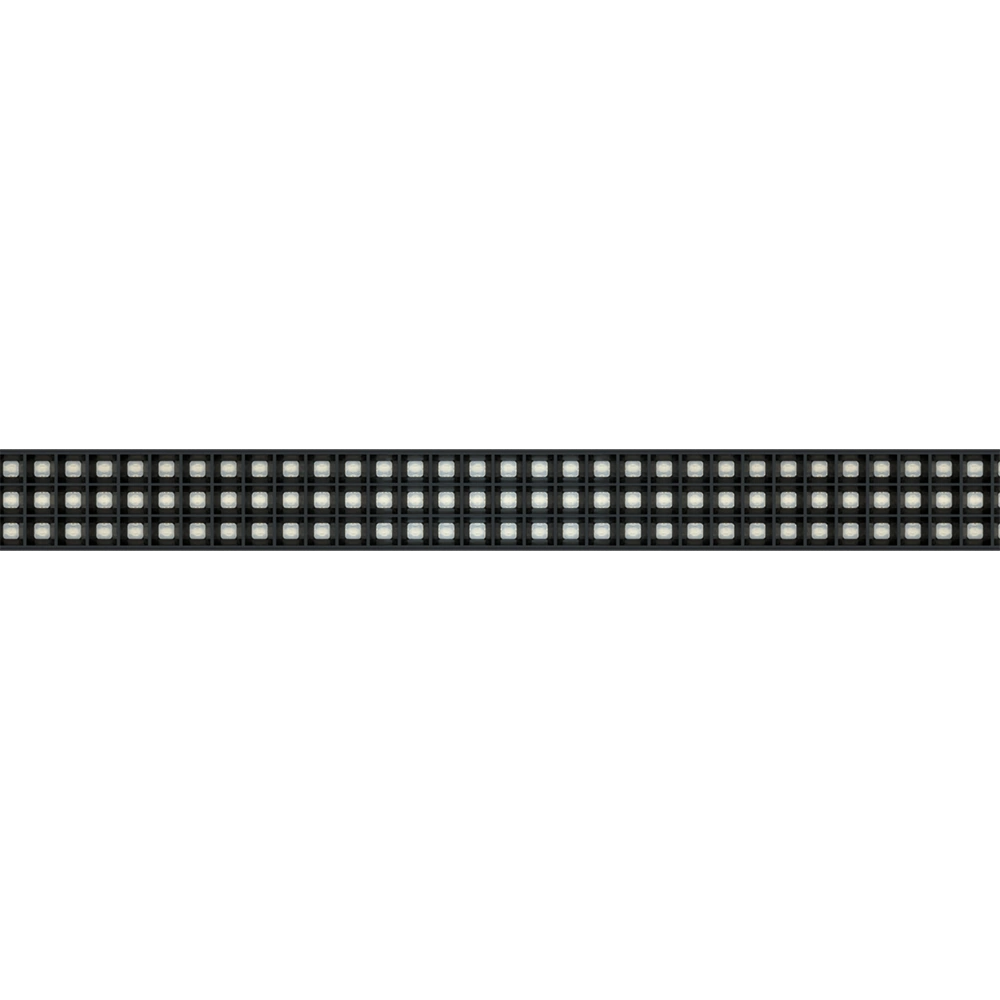

A: The Optix Series is specifically engineered with a micro-prismatic lens and reflector system to achieve a Unified Glare Rating (UGR) of less than 19. This performance meets the strict requirements of the European standard EN 12464-1 for lighting indoor workplaces, including those with extensive VDT (Video Display Terminal) use. This ensures excellent visual comfort for office workers.

Q: What is the process for ordering a custom length or finish?

A: For a custom order, please contact our technical sales team with your project's specific requirements, including the exact length in millimeters and the desired RAL code for the finish. Our MOQ for most custom orders is 50 units. We will generate a technical drawing and quotation for your approval, which typically takes 3-5 business days, before proceeding with production.

Request IES files and a quotation

At XHLWX (led-project-light.com), a Custom Indoor LED Lighting Manufacturer based in China, our team is ready to support your next project. We provide comprehensive technical documentation, including photometric files and installation manuals, to ensure a seamless specification and installation process. Contact us today for a project-specific quotation, to request IES files for your lighting simulation, or to discuss customisation options for the Optix Series (Product Codes: OTX1-S12048, OTX1-S15060, OTX1-S30120).
