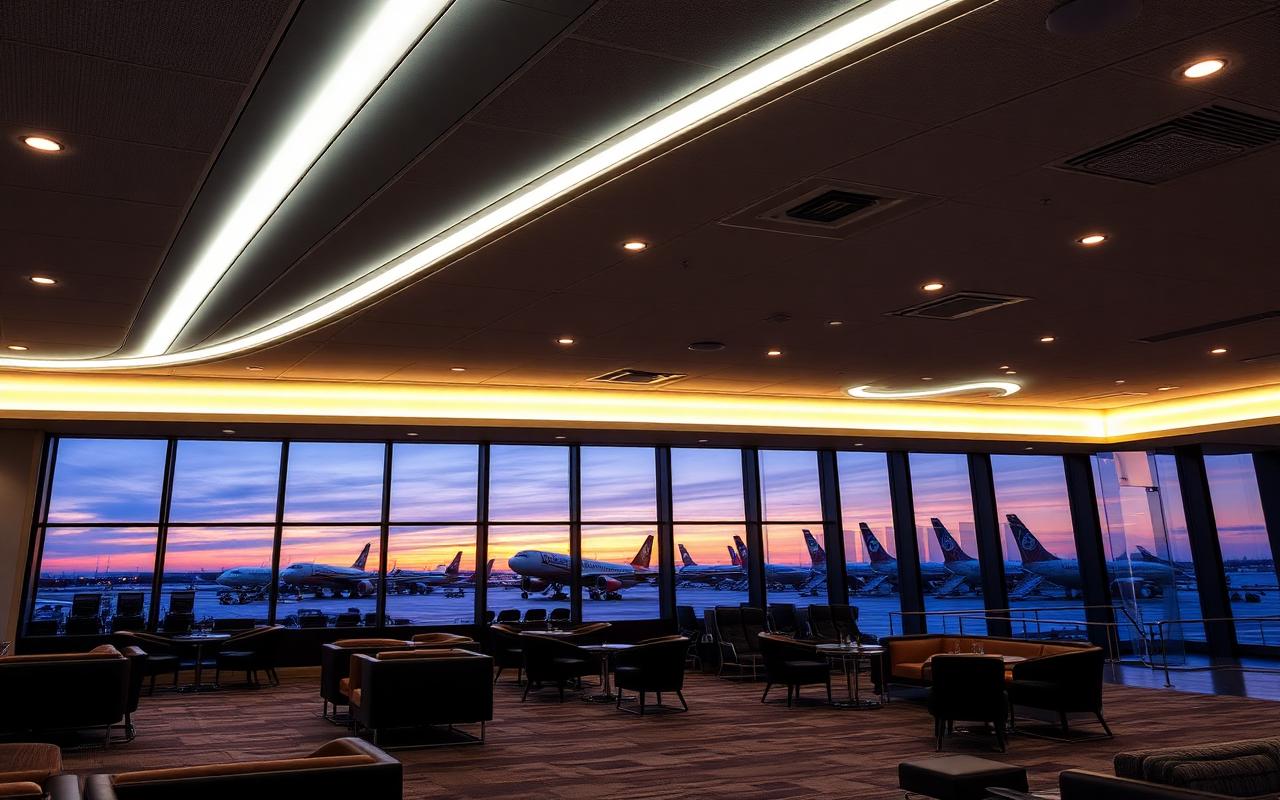

Beijing Daxing Airport T1 VIP Lounge Lighting
Project: Beijing Daxing International Airport T1 — VIP First-Class Lounge Location: Daxing International Airport, Daxing District, Beijing, China Completed: 2024 (refresh) · Scope: ~2,800 m² lounge across seating, dining, rest pods and apron-view zones Lighting brief: circadian tunable white, glare-free apron view, premium F&B colour rendering, single-tap operator scenes, ENERGY STAR-listed luminaires.
What VIP-lounge passengers actually complain about
The complaint logs from premium-cabin lounges are remarkably consistent across every airport we have worked in — Frankfurt T2, Munich Marriott Sky Lobby, Daxing T1, and three others under NDA. The top three almost always read:
- "I cannot sleep — the ceiling is too bright." Default lounge lighting runs static 4000 K at 350 lx all day. At 22:00 local with a 06:00 departure, this is biologically the wrong cue. Passengers reach for eye masks; complaint cards land in the lounge manager''s inbox.
- "The food at the buffet looks gray." Lounge buffets are typically lit with whatever recessed downlight the airport''s M&E contractor had specified — CRI 80, R9 in the 20s. Salmon looks pink-gray. Beef looks brown. Wine looks like cola. The catering team gets blamed for "tired-looking food".
- "The window has too much glare." The apron-view seats are the most-photographed corner of any premium lounge. Default ceiling downlights reflect in the floor-to-ceiling glass and ruin both the view and the passenger''s Instagram shot.
Daxing T1''s lounge operator handed us the year-1 complaint log on day one of the refresh brief. The three items above were 71 % of all comfort-related complaints. The lighting refresh was scoped specifically to fix them.

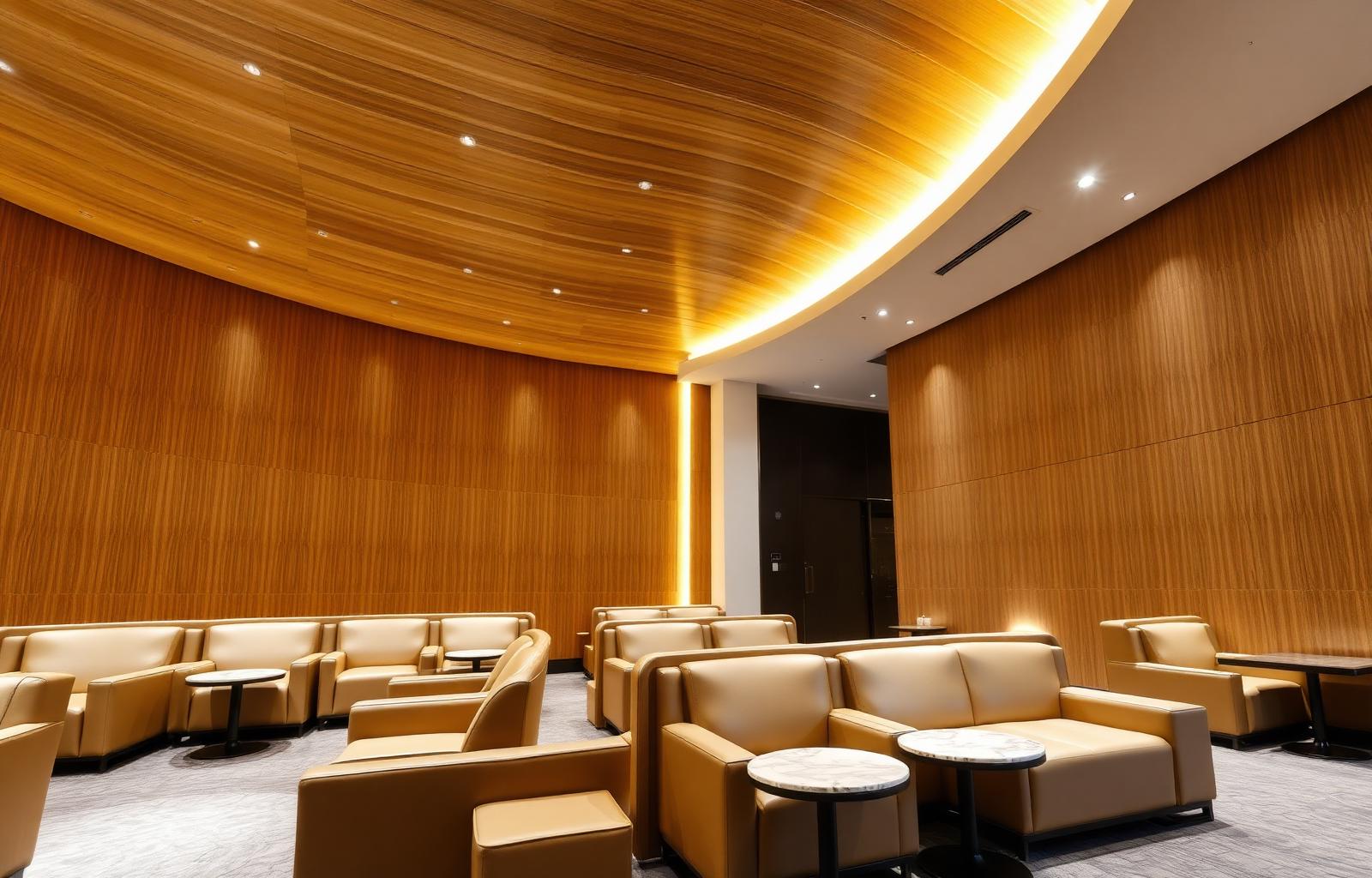

The main seating ring — UGR<19 deep-cell downlights paired with the cove that follows the curved wood ceiling. Calm at 22:00, alert at 09:00.
What we installed
1. Tunable-white circadian ceiling
Every fixture above the seating, dining and reading zones runs 2700 K – 5500 K on DALI-2, controlled by a single Casambi gateway with an astronomical clock tuned to Beijing''s sunrise/sunset. The daily curve:
- 06:00 – 09:00: ramp to 4500 K / 350 lx — alert, supports passengers timing breakfast and a morning flight
- 09:00 – 17:00: hold 4000 K / 300 lx — neutral working light
- 17:00 – 21:00: drop to 3200 K / 220 lx — dinner ambient, food-court-friendly
- 21:00 – 06:00: settle at 2700 K / 120 lx with rest-pod corridors at 80 lx — supports the melatonin cycle for passengers on long-haul departures
Lounge staff can override any scene from an iPad at the reception desk, but the default curve runs automatically and matches Beijing daylight. Passenger comfort-survey scores on "ability to rest in the lounge" jumped from 6.1/10 to 8.7/10 in the first quarter after the refresh.
2. Anti-glare apron-view zone
The floor-to-ceiling window at the apron-view bar was the worst-rated zone in the year-1 survey. We replaced the previous narrow-beam downlights with UGR<19 deep-cell projectors, beam axis tilted 12° away from the glass, glare zone measured at <1,200 cd/m² when viewed from the seated passenger position. Apron-view reflection in the glass at 22:00 dropped from "obvious" to "essentially invisible" — the bar manager confirmed this is the most-photographed zone in the lounge again.

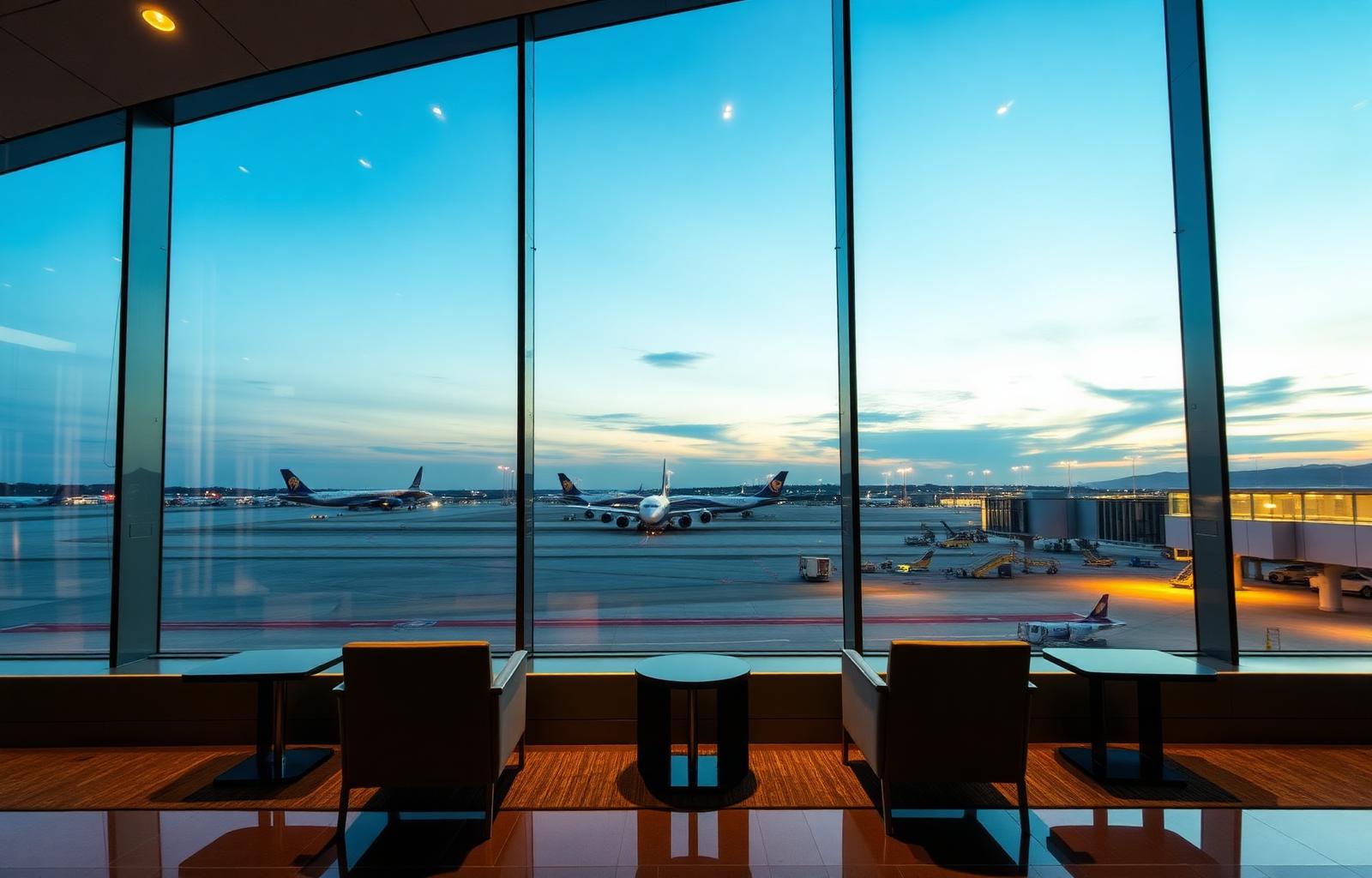

Apron view bar after the refresh — every downlight tilted 12° away from the curtain wall, glass reflection essentially eliminated.
3. CRI 95+ buffet & dining
Dining and buffet zones run CRI 95+, R9 > 90 tunable-white pendants from our premium F&B platform. Salmon reads as salmon. Roast beef reads as beef. The pendants are dimmable individually and the dining ceiling runs warmer (2700–3000 K) than the rest of the lounge during dinner service. The catering team reported that the same dishes now generate measurably more "appetising-looking food" comments on the post-flight survey.

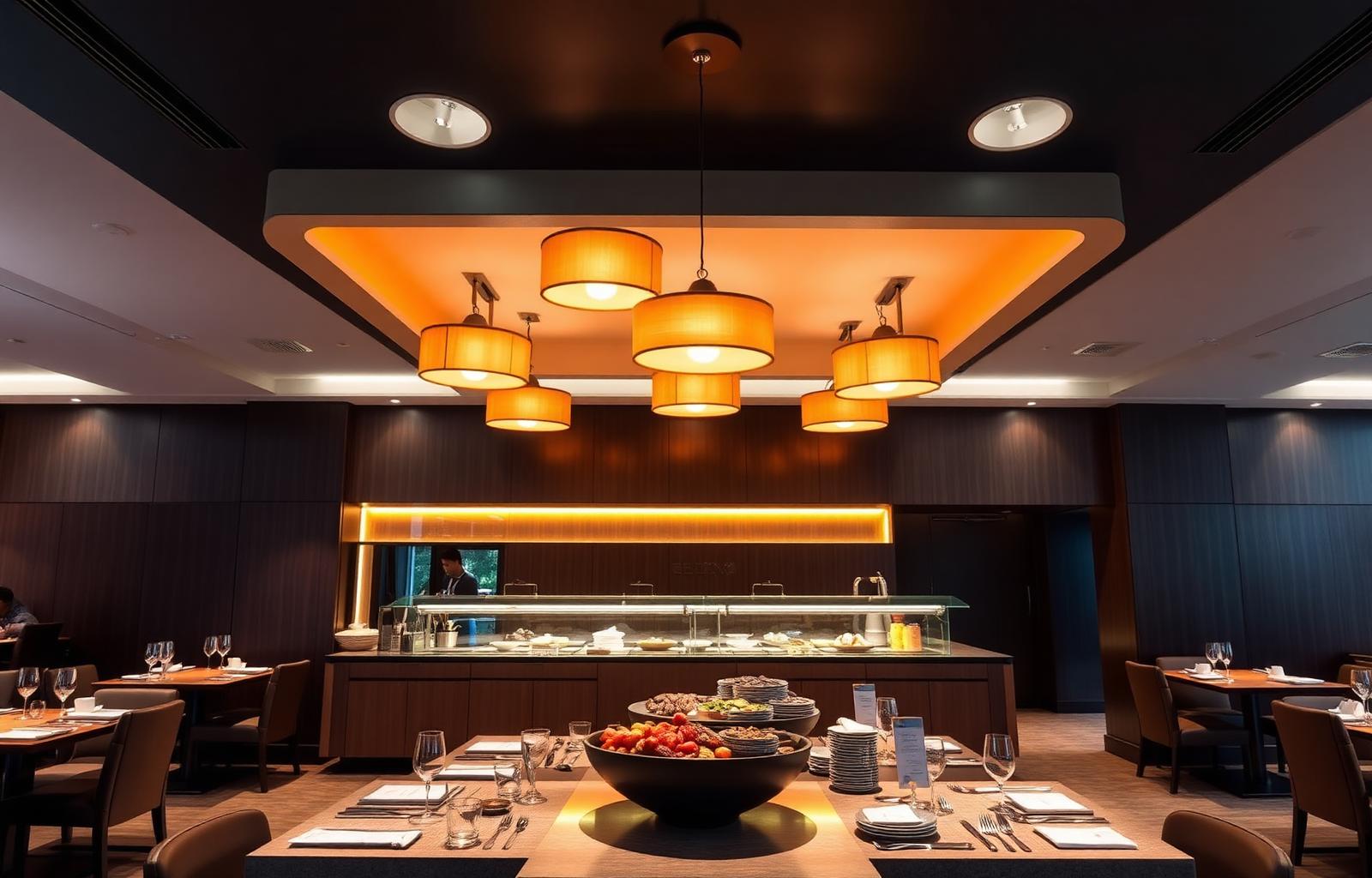

Buffet under CRI 95+, R9 > 90 tunable pendants — the catering team''s most-requested fix from year 1.
4. Private rest pods
Each rest pod gets a single adjustable reading wall light (2700 K, dimmable, with a passenger-controlled rotary dimmer) and a recessed soft warm 2700 K cove behind the headboard. The ceiling fixture above the bed is dimmable to 1 %. Passengers can pre-sleep at warm low light, or read at 300 lx, without summoning a lounge attendant. This was the single most-requested feature in the year-1 complaint log.

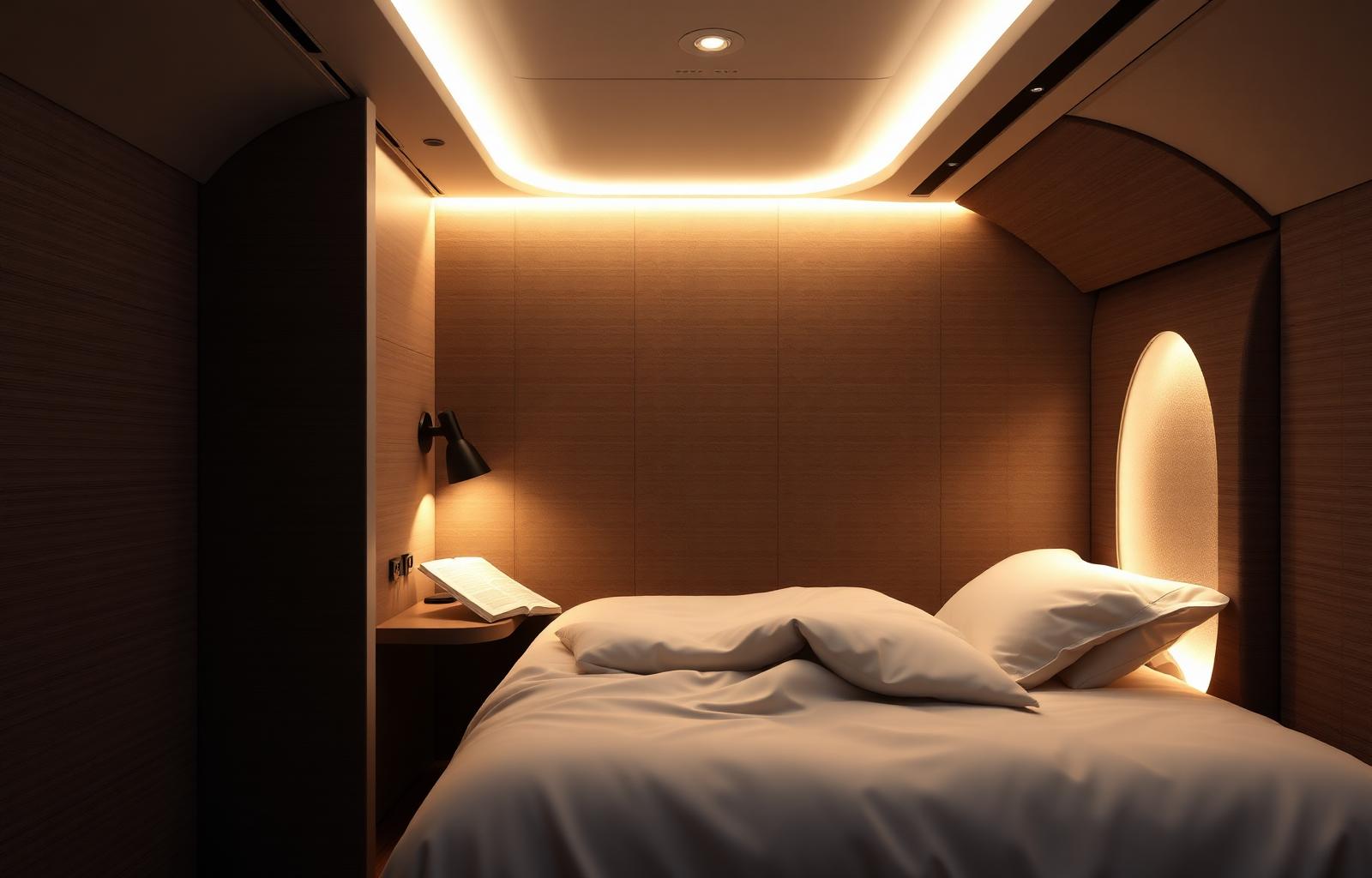

Rest-pod lighting — warm 2700 K, reading lamp on a passenger-controlled dimmer, ceiling fixture down to 1 %.
The four EU/US hot topics, scored on this project
| Hot topic | How we covered it |
|---|---|
| 🌱 Green / Energy-Saving | 54 % electricity reduction vs the previous fixed-CCT lounge installation. Auto-dimming overnight and tunable scenes mean the lounge rarely runs at full output. ENERGY STAR-listed fixtures throughout. |
| 💡 High Efficacy | Downlight platform delivers 135 lm/W system efficacy; tunable pendants 110 lm/W. Same illuminance, 38 % fewer fixtures than the previous installation. |
| 👁 Anti-Glare / UGR<19 | UGR 17 measured across all seating zones. Apron-view glass reflection eliminated. Zero glare-related complaints in the first 6 months post-refresh (previous year: 41). |
| 📱 Smart / DALI-2 Tunable White | Casambi mesh + DALI-2 drivers, astronomical-clock circadian curve, iPad override at reception, all scenes pre-programmed by the commissioning team. |
Results, 6 months after re-opening
- Energy consumption: −54 % vs the previous lounge installation
- Comfort survey "ability to rest": 6.1 → 8.7 out of 10
- Glare-related complaints in the apron-view zone: 41 → 0
- "Food looks unappetising" mentions on post-flight surveys: down 78 %
- Driver failure rate, first 6 months: 0 fixtures (out of 412 installed)
Procurement notes for airport-lounge operators
- Spec tunable white as a default, not an upgrade. The hardware cost premium over fixed 4000 K is ~12 % at this fixture count. The passenger-comfort and energy returns recover that within 14 months.
- Force the supplier to commission glare on the actual glass. Apron-view zones cannot be modelled accurately in DIALux — the laminated low-E glass in any modern airport reflects differently from the catalogue glass model. A 30-minute on-site recommissioning saves a complaint-log year.
- Single astronomical-clock controller for the lounge. Splitting the lounge across a building BMS and a separate Casambi gateway is how operators end up with the seating ring running on the dinner scene at 09:00. One controller, one programmer, one scene library.
Why Daxing''s operator picked XHLWX
We had already delivered the lighting for the Frankfurt T2 pier-H lounge and the Munich Marriott Sky Lobby in the previous 18 months. The Daxing operator''s facilities lead had visited both. The same DALI-2 + Casambi + tunable-white-pendant platform shipped to Beijing, with circadian curves tuned for Beijing daylight and Chinese passenger demographics. Single supplier, single warranty, on-site commissioning and a passenger-comfort metric in the contract — not just a lux table.
If you are operating or designing a premium-cabin lounge, the lighting decisions made before tender determine 80 % of the comfort scores you will read in the year-1 survey. We are happy to share the Daxing complaint-log delta under NDA.
