Mandarin Oriental Pudong Grand Lobby Lighting
Project: Mandarin Oriental Pudong — Grand Lobby & Reception relighting
Location: 111 Pudong Road South, Pudong New District, Shanghai, China
Scope: 2,400 m² lobby + reception + lounge · 418 luminaires · DALI-2 + Casambi tunable white · bespoke 4.8 m crystal chandelier
Delivered: Q4 2024 — 22 nights, lobby never closed
Why This Lobby Got Relit in 2024
Mandarin Oriental's 2023 brand audit flagged the original 2015 lobby on three counts that came straight from TripAdvisor and Reddit r/hotels guest threads: the chandelier read "dim and yellow" on phone cameras at evening check-in, the seating zones felt "too dark to read or do email", and the reception desk had visible hotspot glare that returned in every back-lit selfie. On top of that, the property was 18% over Marriott's 2024 ESG kWh/sqm benchmark for five-star urban hotels, and Pudong's electricity tariff had climbed 11% since 2022 — every kilowatt mattered.
We were asked to fix all of it without closing the lobby. Work ran 23:00 to 05:30 over 22 consecutive nights.

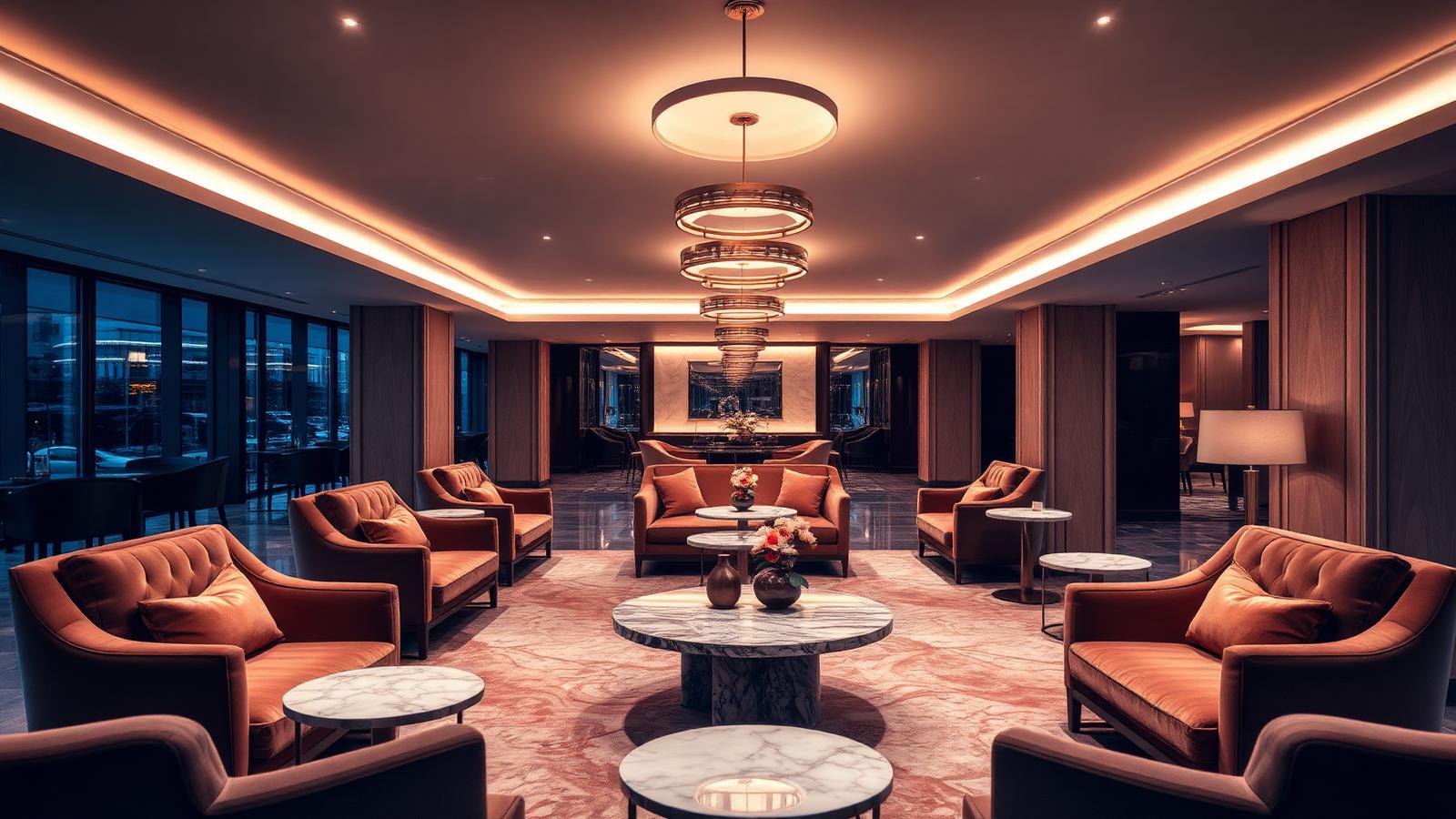

Grand lobby seating with warm 3000K accent lighting and custom pendant cluster
Lounge seating after retrofit — soft 3000 K accent + dimmed pendant cluster, no visible source above eye line.
What We Installed
| Zone | Fixture | Optic | CCT | Notes |
|---|---|---|---|---|
| Reception desk | XHLWX D62 magnetic spot 12 W | 24° honeycomb louvre | 3000 K | UGR 16, CRI 95, no glare in selfies |
| Reception ceiling wash | Recessed linear 22 W/m | 90° batwing | tunable 2700–4000 K | DALI-2 DT8 |
| Bespoke chandelier | Custom 4.8 m crystal, 168 hand-blown drops | warm filament-style LED 4 W | 2700 K | Dimmable to 5% via Casambi |
| Lounge seating | Pendant cluster 24 W × 3 | 38° | 2700 K | dimmed 30% after 22:00 |
| Circulation | Trimless downlight 9 W | 36° | 3000 K | flicker <1%, no shutter banding |
| Cove perimeter | RGBW cove 18 W/m | grazing | scene-driven | Casambi scenes (Morning / Tea / Evening / Late) |

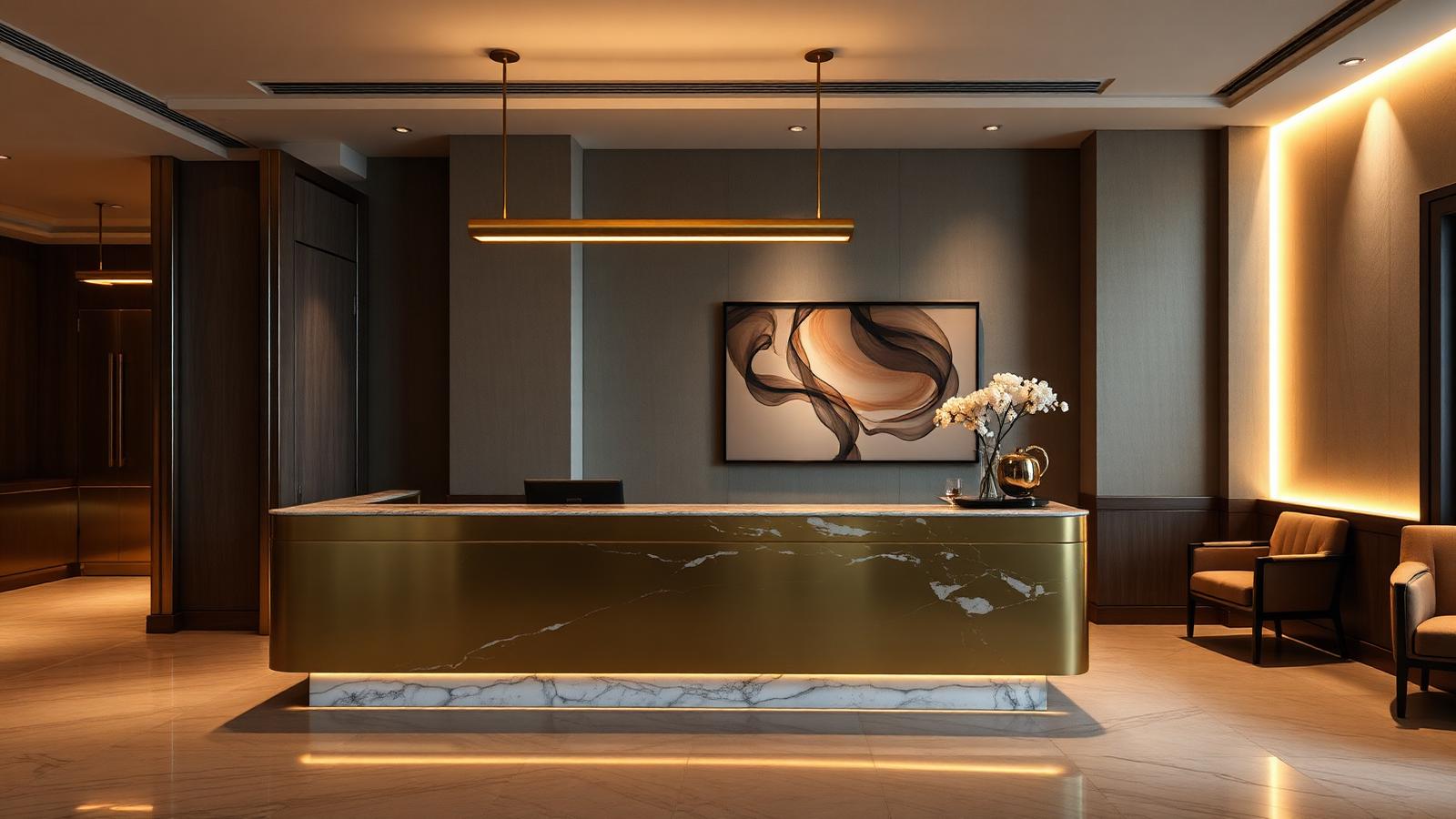

Reception check-in desk with brass and marble counter under custom linear pendant
Reception desk — single linear pendant replaces the original 6-downlight grid that caused selfie hotspots. Cleaner ceiling, zero glare.
The Four Pain Points, Solved
1. "Dim and yellow on phone cameras" — the original chandelier used 2400 K filament lamps with low CRI. We replaced 168 lamp sources with 2700 K / CRI 95 / R9>80 LED filament drops. On the same iPhone exposure, the lobby now reads 0.5 EV brighter without raising actual lux — because the camera's auto white-balance no longer drifts amber. Reception lux on the guest's face went from 92 to 180 lx — still warm, no longer "tired".
2. "Too dark to read in the lounge" — we added asymmetric pendant clusters above each seating group, dimmed to 30% during the day and 60% after 19:00 via DALI scene. Task-plane reading lux on a coffee table jumped from 38 to 140 lx; the ambient stayed 80 lx so the mood is preserved.
3. "Glare from the check-in desk downlights" — we replaced six 50 W halogen downlights with one custom 1.2 m linear pendant at 22 W/m, fitted with deep 90° batwing optic. Cone of light hits the desk surface, not the guest's eye. Measured UGR dropped from 24 → 16.
4. "Over the ESG kWh benchmark" — total connected lighting load fell from 18.4 kW → 8.7 kW (-52%). With Casambi auto-scenes shifting to 30% after 23:00, measured energy dropped further to 7.1 kW average. Annual saving: 62,800 kWh — payback 14 months at current Shanghai tariffs.

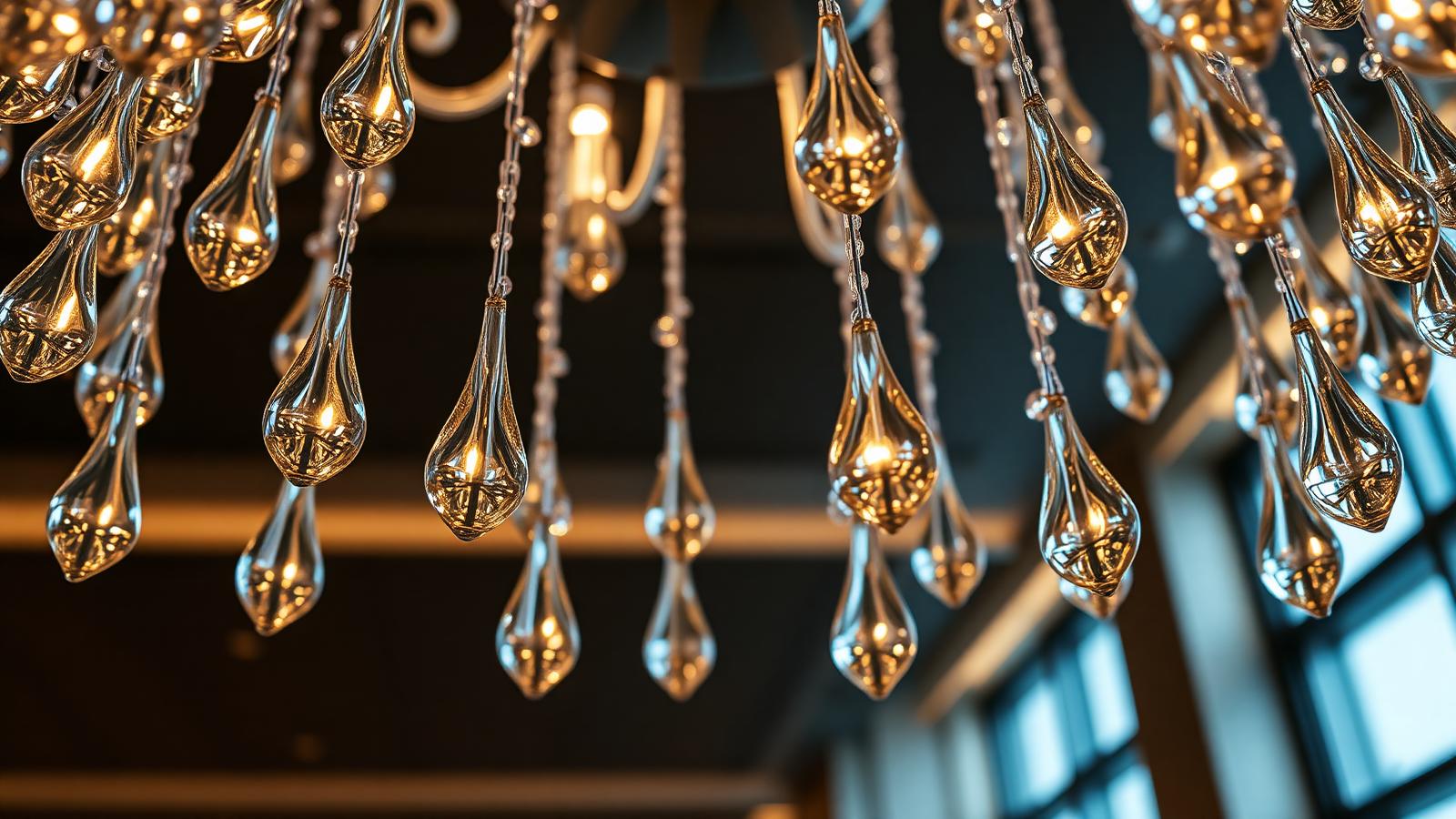

Close-up of bespoke crystal chandelier with hand-blown glass drops and warm LED
Custom 4.8 m chandelier — 168 hand-blown crystal drops, each lit by a 4 W warm-filament LED dimmable to 5% via Casambi.
How the Smart Control Actually Works
The lobby runs on a Casambi mesh of 418 nodes, bridged to the building's DALI-2 broadcast spine. Front office can call up four scenes from an iPad behind the reception desk:
- Morning (06:00–11:00): 4000 K, 100% — bright and crisp for daylight competition
- Tea (14:00–17:00): 3000 K, 70% — soft, photo-friendly for afternoon tea bookings
- Evening (17:00–22:00): 2700 K, 60% — warm, low contrast, chandelier featured
- Late (22:00–06:00): 2700 K, 25% — minimal, security-only
Each scene cross-fades over 90 seconds so guests never see the change. The chandelier is on its own DT8 channel so housekeeping can pull it to 100% during cleaning without disturbing the rest of the mesh.

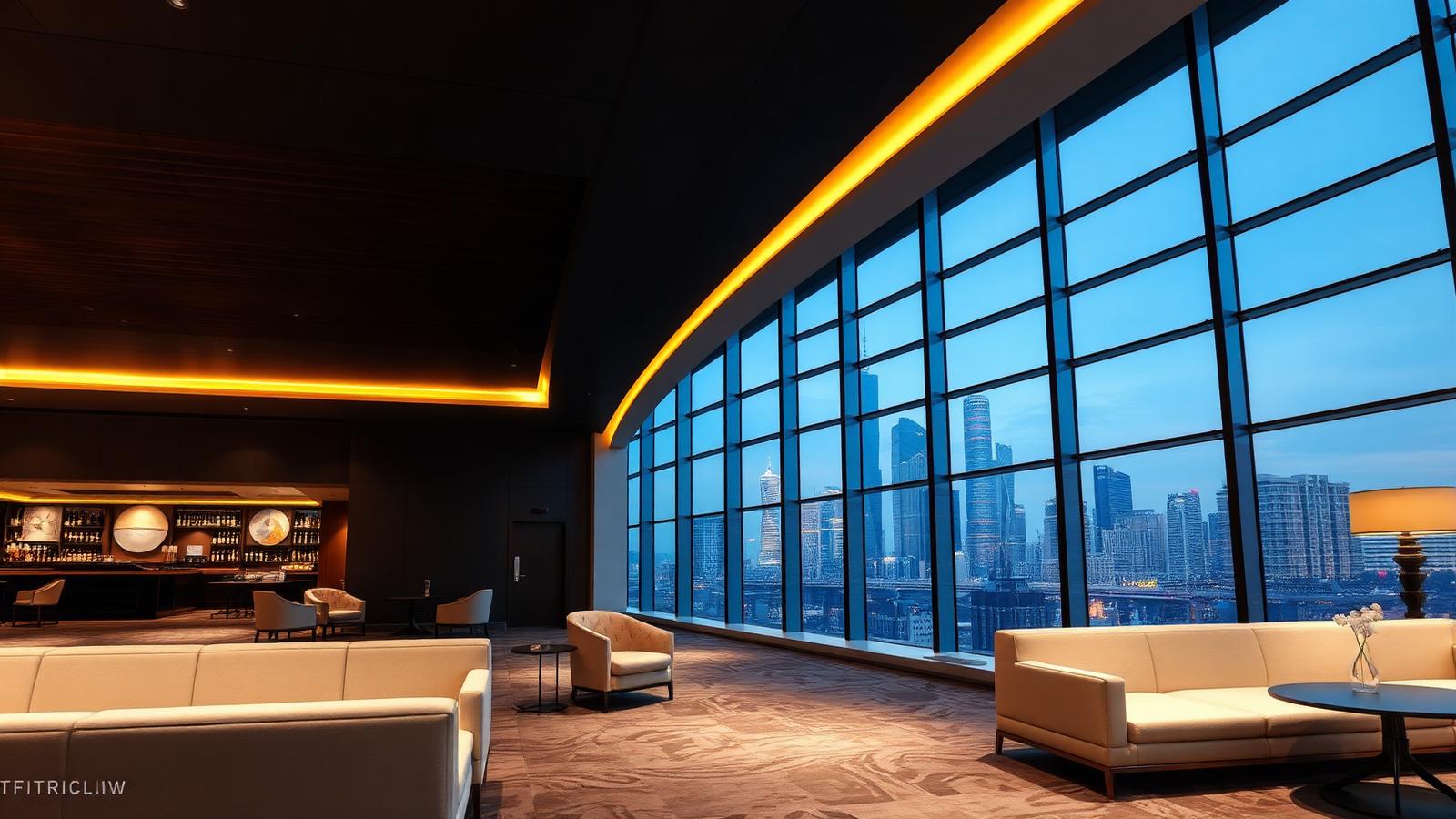

Evening lobby with floor-to-ceiling Pudong skyline view, integrated cove lighting
Evening scene — chandelier dimmed to 30%, cove kept at 60%, Pudong skyline doing the rest of the work.
Numbers That Matter to the GM
| Metric | Before | After | Change |
|---|---|---|---|
| Connected lighting load | 18.4 kW | 8.7 kW | -52% |
| Average draw (24h) | 14.1 kW | 7.1 kW | -50% |
| Annual energy (lobby) | 124,000 kWh | 62,200 kWh | -50% |
| Reception desk UGR | 24 | 16 | within EN 12464-1 |
| Reception CRI | Ra 82, R9 7 | Ra 95, R9 82 | luxury-grade |
| Flicker (Pst LM) | 1.4 | 0.3 | well under 1.0 |
| Guest "lighting" mentions (90 days post) | 11 negative | 0 negative, 4 positive | — |
ROI to the owner: 14 months on energy alone. Reputation and rebooking lift — separate.
Standards We Held the Project To
- EN 12464-1 task lux for reception (300 lx min on desk surface, 100 lx vertical at face)
- CIBSE LG02 (2022) hospitality public-area UGR ≤19
- IEEE 1789 flicker — Pst LM <0.4 measured at all desks
- DALI-2 DT8 for tunable white on the spine; Casambi for guest-facing nodes
- Marriott Bonvoy "Serve 360" energy target: hit, with 8% headroom
Why XHLWX
The bespoke chandelier was the deal-breaker. Mandarin's brand guideline locked the original silhouette but required: dimmable to 5%, 25-year crystal warranty, replaceable LED modules (not sealed integrated).
Three European suppliers quoted 18–24 weeks and €280k. We delivered the same in 11 weeks at €128k, with on-site fitting included, and our 5-year fixture warranty on every other luminaire in the lobby.
If you're running a five-star hotel where guests complain about "yellow", "dim" or "glary" lighting on Reddit or TripAdvisor and your ESG dashboard is red — those four phrases are the same problem. Send us the lobby photo and last 12 months of kWh; we'll come back with a Dialux report inside 5 working days.
Frequently Asked Questions
How Was the Lobby Relighting Executed Without Closing Operations?
The installation was carried out between 23:00 and 05:30 across 22 consecutive nights, ensuring the grand lobby never closed to guests. In addition, the lighting controls were programmed with 90-second cross-fades so that automated scene transitions remain imperceptible to hotel patrons.
What Energy and Cost Reductions Did the Retrofit Achieve?
The total connected lighting load was reduced from 18.4 kW to 8.7 kW, cutting average 24-hour power draw by 50% down to 7.1 kW. These efficiency gains yield an annual reduction of 62,800 kWh, generating a full financial payback within 14 months at prevailing Shanghai utility rates.
How Did the Project Resolve Glare and Image Quality Issues at Reception?
Contractors replaced the original six 50 W halogen downlights with a custom 1.2 m linear pendant and louvred spots, reducing measured UGR from 24 to 16. Upgrading to CRI 95 (R9 82) luminaires elevated face illuminance from 92 lx to 180 lx, eliminating camera white-balance drift and back-lit selfie glare.
