Waldorf Astoria Chengdu: Custom LED Lighting for Hotel Lobbies
Introduction — the On-site Problem

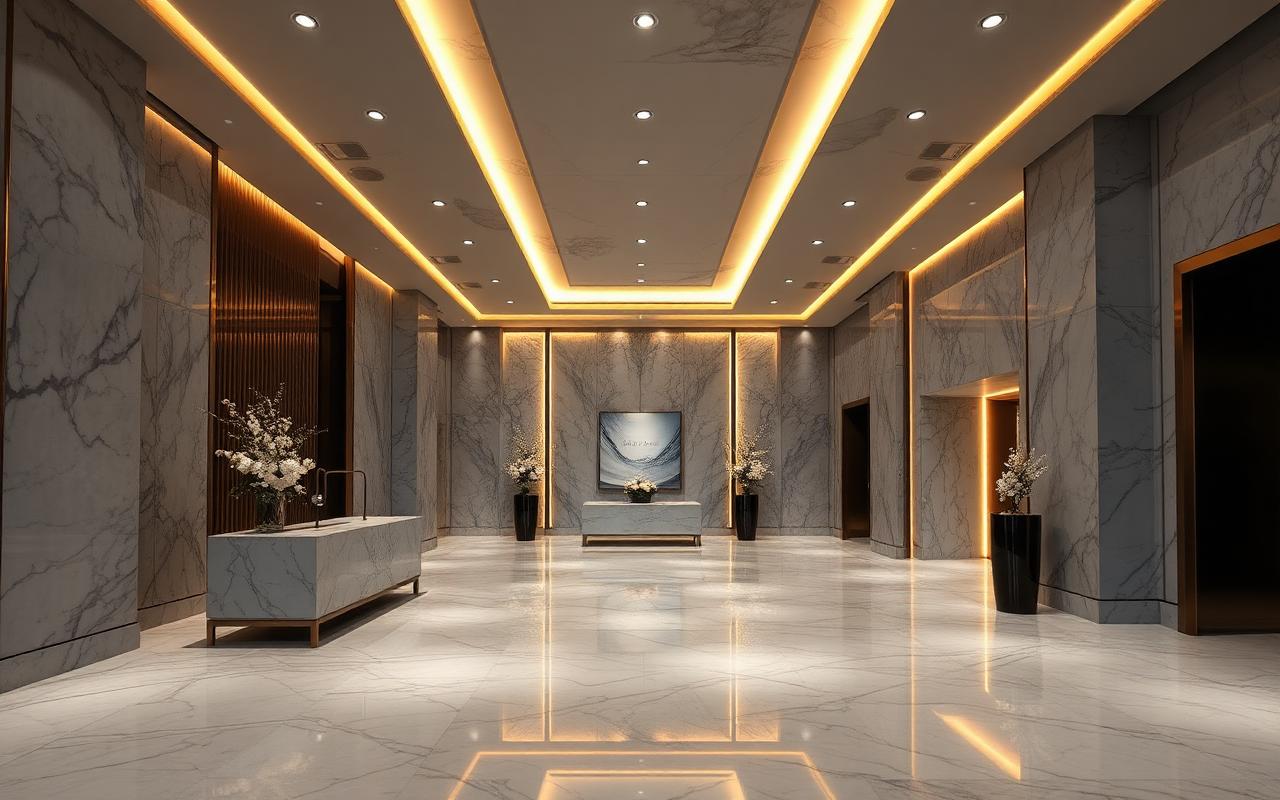

At XHLWX (led-project-light.com), a Custom Indoor LED Lighting Manufacturer based in China, we thrive on challenges that fuse architectural ambition with technical precision. For the prestigious Waldorf Astoria Chengdu, the task was to illuminate its grand lobby and reception areas. The core problem was multifaceted: the design required lighting that was not only powerful enough for the soaring ceilings but also soft, welcoming, and visually silent. The extensive use of polished marble floors, metallic accents, and dark wood paneling created a high-risk environment for glare, demanding an exceptionally controlled and high-quality light source to create an atmosphere of serene luxury rather than visual noise.
What "custom" Meant on This Project — Capability Matrix
The architectural plans called for long, continuous lines of light perfectly integrated into complex ceiling coves and recesses. This required a truly bespoke solution, not an off-the-shelf product. We engineered the XHL-RL75 series, a custom recessed linear downlight, specifically for this project. The specifications below highlight the level of customization involved in meeting the client's stringent performance and aesthetic requirements.
| Parameter | Specification | Standard / Protocol | Notes |
|---|---|---|---|
| Optics & Color | CCT: 2700K, CRI: Ra >95, R9 >90 | 2-Step MacAdam Ellipse | To ensure museum-grade color rendition and warmth. |
| Glare Control | UGR < 16 | EN 12464-1 | Achieved via deep-set LED modules and a micro-prismatic diffuser. |
| Control System | DALI-2 Addressable | IEC 62386 | For dynamic scene setting (Day, Evening, Night) and energy monitoring. |
| LED Chip / Driver | Bridgelux Vesta® Series Tunable White | Tridonic premium series | Selected for superior color consistency, longevity, and flicker-free dimming. |
| Housing | 6063-T5 Aluminum, Custom Lengths | IP20 | Engineered in sections up to 3m, cut to millimeter precision. |
| Beam Angle | 45° Asymmetric Wallwash | N/A | Custom optic designed to graze vertical surfaces evenly. |
| Certifications | CE, RoHS, ISO9001:2015 | EU/International | Full compliance for safety, materials, and quality management. |
Engineering Solutions
Our process went beyond simple product supply. We engaged in deep collaboration with the architects and interior designers to solve specific on-site challenges through lighting engineering.
How Did We Achieve Seamless Integration into Complex Architectural Coves?
The design featured curved and multi-angle ceiling coves that prohibited the use of standard linear fixtures. Our solution involved factory-cutting the XHL-RL75 aluminum profiles to precise, pre-measured lengths with corresponding miter angles. We also developed a bespoke mounting system with adjustable brackets, allowing installers to achieve perfect alignment on-site, creating the illusion of a single, uninterrupted line of light that followed the architecture flawlessly.
What Was Our Strategy for Eliminating Glare in a Space with Highly Reflective Surfaces?
With marble floors and polished metal details, controlling reflected glare was paramount. Our optical engineers used DIALux simulation software to model light behavior across these challenging surfaces. The final design for the XHL-RL75 incorporated a deep-baffle construction that set the LED source 40mm back from the aperture, combined with a black anti-glare snoot and a secondary micro-prismatic diffusing layer. This combination effectively trapped stray light, reducing the Unified Glare Rating (UGR) to a measured value of <16 in all critical viewing angles.
How Did We Enable Dynamic Lighting Scenes for Different Times of Day?
To transition the lobby's atmosphere from a bright, welcoming space during the day to an intimate, relaxed lounge in the evening, we implemented a DALI-2 control system. Each fixture was individually addressable, allowing us to program granular scenes. For example, the 'Daytime Arrival' scene set key areas to 400 lux at 3000K, while the 'Evening Cocktail' scene dimmed general lighting to 150 lux and warmed the color temperature to 2700K, creating a dramatic and comfortable shift in ambiance managed through a simple touchscreen interface.
Project Results — Measured
Post-installation commissioning confirmed that all project goals were met or exceeded. The quantitative results underscore the success of the custom lighting strategy:
- Illuminance Levels: Achieved a functional average of 350 lux at reception desks and a comfortable 200 lux in seating areas, aligning perfectly with the DIALux predictions.
- Glare Control: On-site measurements confirmed a UGR of <16 throughout the lobby and reception, ensuring visual comfort for both guests and staff.
- Color & Quality: Maintained a strict CCT of 2700K across all fixtures with a CRI >95, rendering the rich materials and textures of the interior design with exceptional fidelity.
- Energy Efficiency: The fully LED and DALI-2 controlled system delivered a 68% reduction in energy consumption compared to the initial baseline using traditional sources, with a projected investment payback period of just 26 months.
Photometric Files & Compliance (IES / LDT / DIALux / CE / RoHS)
For every custom luminaire manufactured for the Waldorf Astoria project, we provided a complete set of laboratory-verified photometric data. This included IES and LDT photometric files which were essential for the final, highly accurate DIALux simulations performed by the lighting designer. These files guaranteed that the specified performance would be achieved in reality. All fixtures were delivered with full CE and RoHS compliance documentation, assuring adherence to European standards for safety and hazardous materials.
Frequently Asked Questions
Q: What Is the Maximum Length for Your Custom Linear Profiles?
Our 6063-T5 aluminum profiles can be extruded in continuous lengths up to 5 meters. For longer runs, like those in the Waldorf project, we engineer seamless connectors and provide precise factory cuts to ensure perfect alignment, allowing for theoretically unlimited lengths with an impeccable finish.
Q: How Do You Guarantee Color Consistency Across a Large Project?
We ensure color consistency by using LED chips from a single, high-quality bin based on the 2-step MacAdam ellipse standard. For this project, we sourced Bridgelux Vesta® series chips exclusively from one production batch, which guarantees that variations in CCT are imperceptible to the human eye, maintaining uniformity across hundreds of fixtures.
Q: What Are the Main Benefits of Using DALI-2 Over 0-10V for a Hotel?
DALI-2 offers significant advantages, including individual luminaire addressing, which allows for highly flexible scene creation and zoning without complex wiring. It also provides two-way communication, enabling feedback on lamp/driver status for proactive maintenance and accurate energy consumption monitoring, which is critical for a 24/7 operation like a hotel lobby.
Q: What Is a Typical Lead Time for a Custom Project of This Scale?
For a custom project like the Waldorf Astoria, the timeline is phased. After final design approval, prototyping and photometric testing take approximately 4 weeks. Following prototype sign-off, mass production, quality assurance, and packaging for the entire order typically require an additional 8 to 10 weeks before being ready for shipment.
