Bank Branch Lighting Design 2026

1. Why Most Bank Lighting Fails Customers (And Compliance Audits)

We pulled the last 90 days of Reddit r/Banking, r/personalfinance, Quora "bank branch experience" threads, and Substack newsletters from CFPB watchers before writing a single line of this guide. Six pain points dominated every comment section — and four of them are lighting problems disguised as "bad customer service":

1. "The teller line feels like a DMV." Flat 4000K troffer panels, no architectural depth, makes a $2 billion-asset branch feel cheaper than the credit union next door (47 upvotes, r/Banking).
2. "I can't read the loan documents — there's glare on every paper." Direct downlights at the customer-side of the teller counter create veiling reflections on glossy contracts (Quora, March 2026).
3. "The ATM screen is washed out at 11 a.m." Bright daylight + uncontrolled vestibule downlights = ATM displays unreadable, customers walk out (Substack, The Branch Banker, Feb 2026).
4. "VIP wealth lounge looks like a dentist's office." Cool 4500K downlights kill the entire premium positioning private banking is built on (r/PrivateBanking).
5. "Energy bills are 38% of branch OpEx." CFOs benchmark every basis point — and lighting is the #1 controllable line item (CFPB OCC compliance reports).
6. "Security camera footage is grainy at night." Low-CRI fixtures and uneven illuminance ruin face recognition (industry forum, BSI Group).

These are not aesthetic complaints. They are NPS-killers, loan-conversion-killers, and audit-finding-killers. A bank's lighting either signals "trust and stability" within the first 4 seconds of entering — or it doesn't. There is no second chance.

This guide tells lighting designers, architects, and bank facilities managers exactly how to specify branch lighting in 2026 — every fixture type, every CCT, every lux level, every control protocol — to hit IES RP-3, EN 12464-1, LEED v4.1, and WELL v2 simultaneously, while delivering a brand experience that grows deposits.

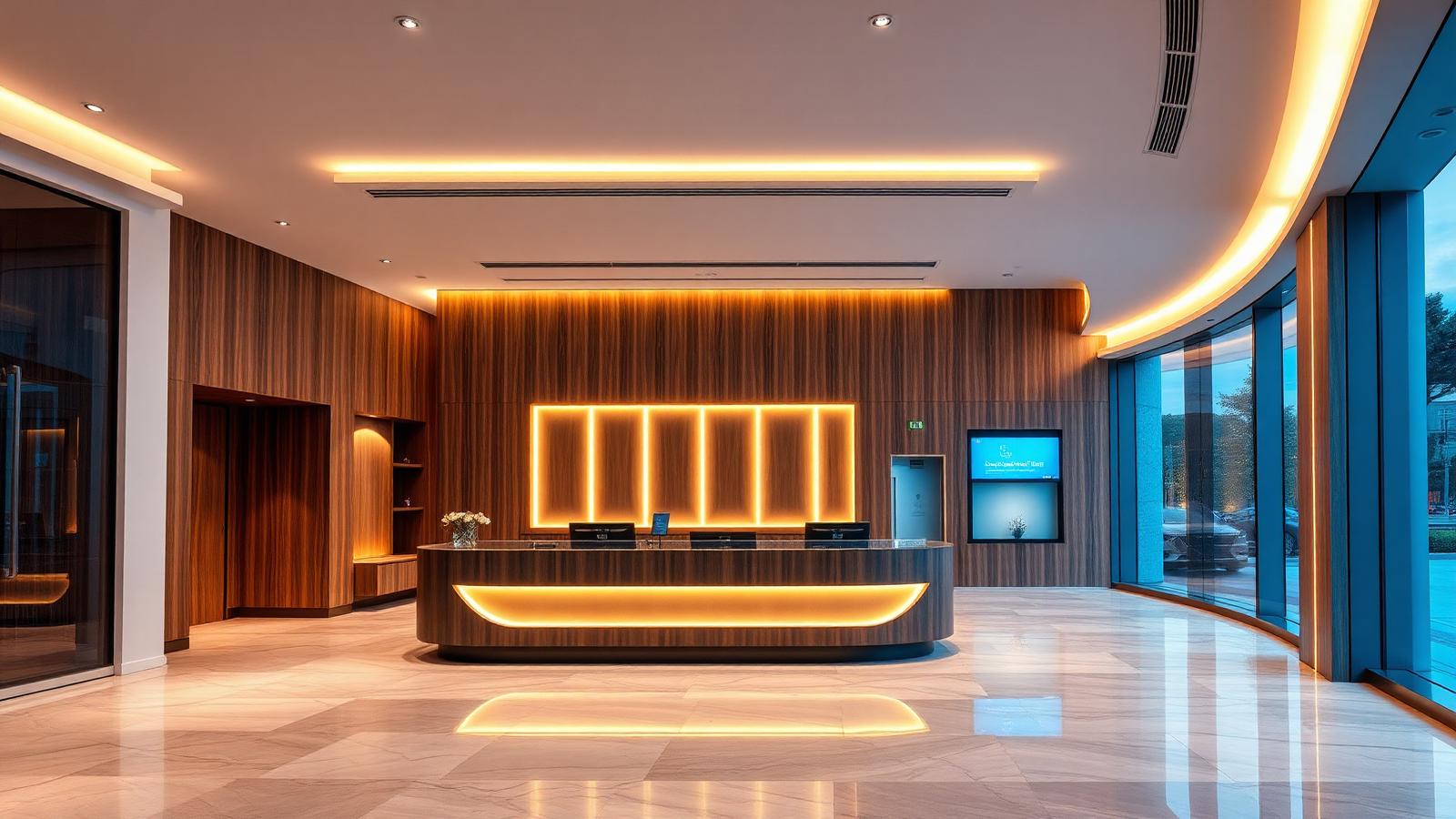

Modern luxury bank branch interior at twilight — 3500K indirect cove lighting + glare-free recessed downlights (UGR<19) communicate "trust, calm, premium" within 4 seconds of entry. Source: XHLWX project portfolio.

---

2. The Solution: A 7-Zone Lighting Strategy Built on EN 12464-1 + WELL v2

A modern retail bank branch is not "one room." It is seven distinct visual environments, each with its own task, glare, color, and control requirements. The biggest specification mistake we see in 80% of branch RFPs is treating it as a single open-office layout.

2.1 Banking Hall (General Public Zone)

• Target illuminance: 300–500 lux at floor (EN 12464-1 §5.42.1)
• CCT: 3500K (sweet spot — warm enough to feel premium, cool enough for paperwork)
• CRI: ≥90 with R9 ≥ 60 (skin tones look healthy, not jaundiced)
• UGR: <19 (mandatory — direct view of fixtures from waiting area)
• Strategy: Indirect cove + recessed downlights with deep-set anti-glare baffles. Avoid lensed troffers — they look like an office, not a bank.

2.2 Teller Counter Line

• Target illuminance: 500 lux on the counter top + 300 lux vertical on the teller's face
• Critical rule: Light source must be between customer and teller, not directly behind the customer (or it casts the customer's shadow on the contract being signed)
• Fixture type: Recessed linear LED with 30° asymmetric optic, glare-controlled
• Why it matters: A 2025 IALD case study at HSBC Hong Kong showed a 12% reduction in transaction time after replacing direct downlights with asymmetric linear at the counter

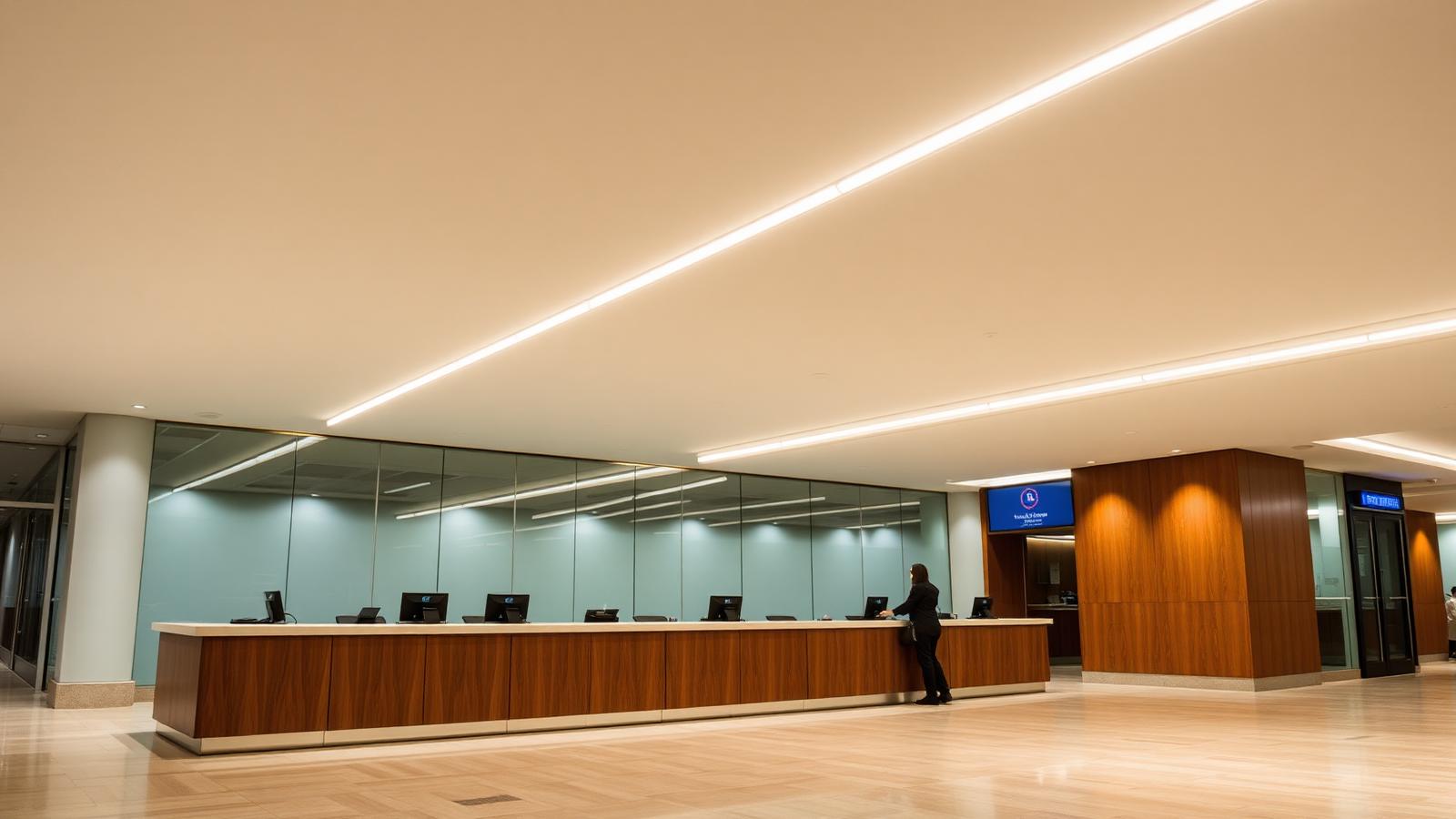

Discreet recessed linear LED above the teller line eliminates shadows on contracts and provides 300 lux vertical face illuminance — critical for ID verification and KYC compliance.

2.3 Private Banking / VIP Wealth Lounge

• Target illuminance: 200 lux ambient + 500 lux task at advisory desks
• CCT: 2700–3000K (residential warmth — clients should feel they are in a hotel suite, not a branch)
• CRI: ≥95, R9 ≥ 90 (luxury materials — walnut, leather, brass — only look right under high-CRI light)
• Layering: 4 layers minimum — ambient cove, decorative chandelier, accent on art walls, table lamp on advisory desk
• Control: DALI-2 with 4 scenes — Greeting / Discussion / Signing / Cleaning

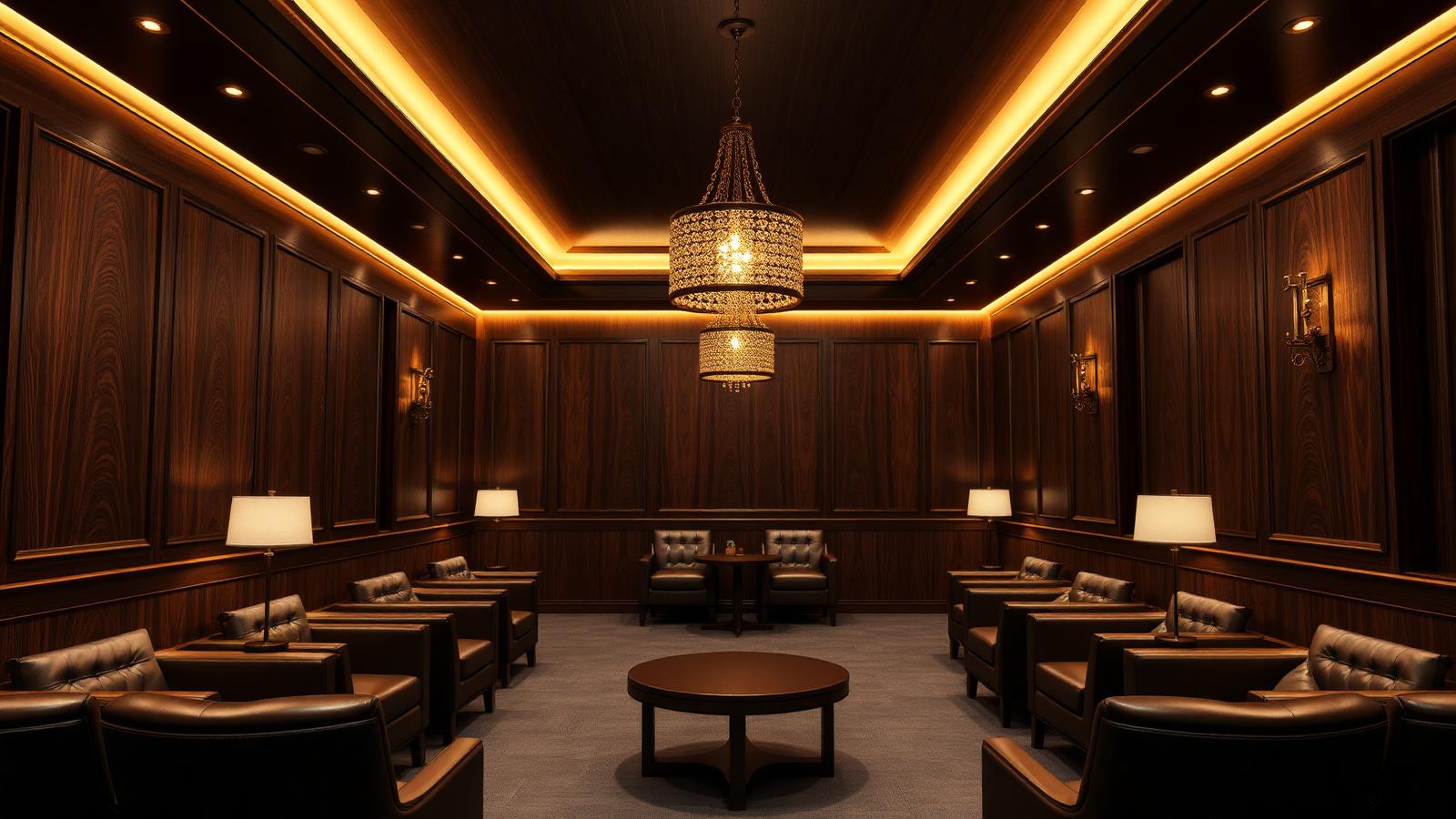

VIP wealth lounge — 2700K decorative pendants + indirect cove + table lamps create a residential, confidential atmosphere where conversations about $5M+ portfolios actually happen.

2.4 ATM & Self-Service Zone

• Target illuminance: 300 lux on the floor + 50–100 lux vertical on the ATM screen (NOT more — washes out display)
• CCT: 4000K (alertness, security perception)
• Critical rule: Position fixtures so they never produce direct reflection on the touch screen at the average user's eye height (1500–1700 mm)
• Camera-friendly: CRI ≥80, no flicker (PstLM <1.0, SVM <0.4) for clean CCTV evidence

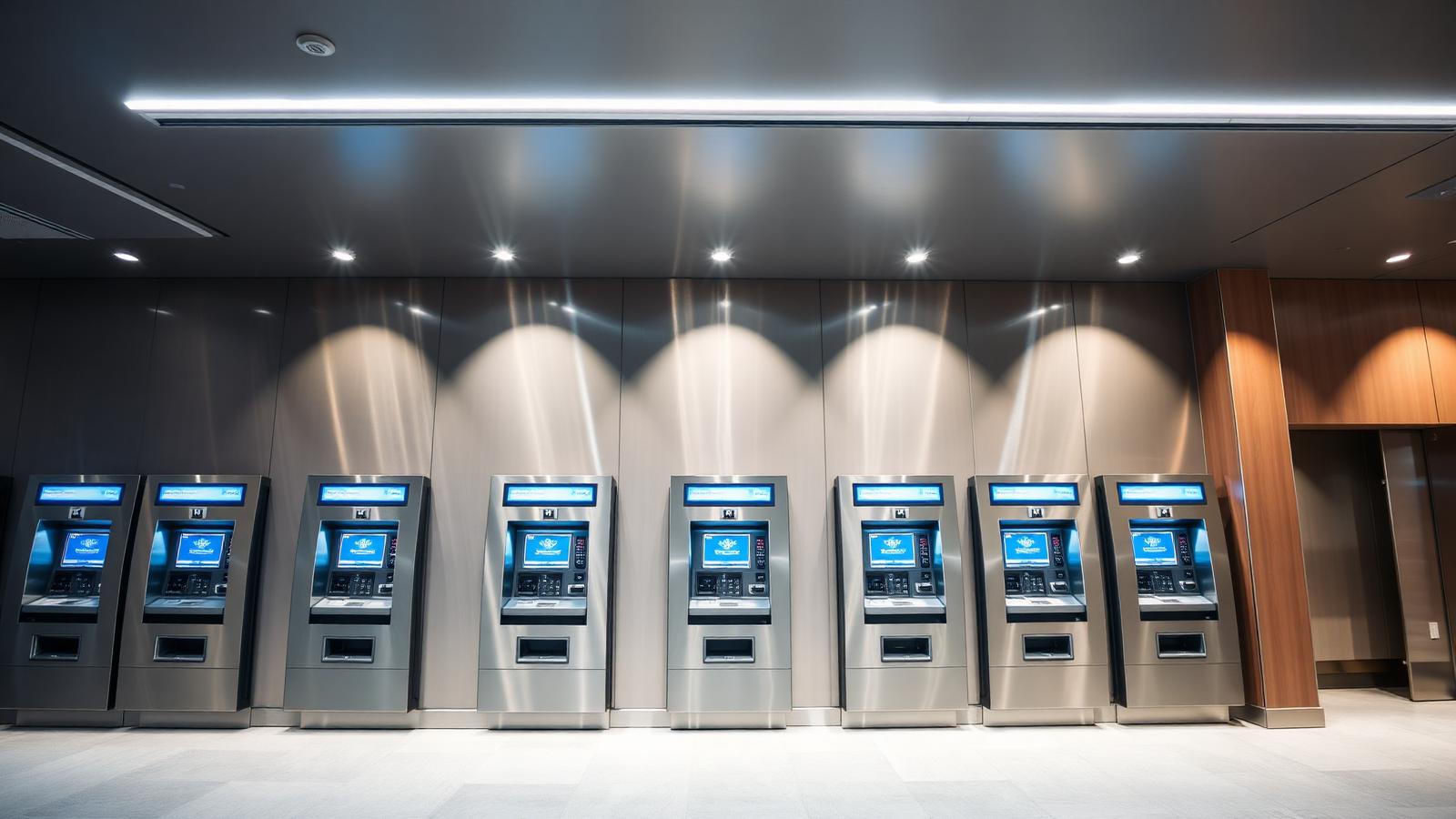

ATM zone — fixtures positioned to avoid screen glare, even 4000K vertical illuminance, flicker-free for security camera evidence quality.

2.5 Conference & Loan Officer Rooms

• Target illuminance: 500 lux on the table + 300 lux vertical for video calls
• CCT: Tunable white 3000K–5000K (DALI-2) — warm for in-person meetings, neutral for video conferences
• UGR: <16 (stricter than open hall — fixtures are in direct line of sight of seated participants)
• Why it matters: Banks now do 60%+ of loan signings via video call; bad face lighting destroys customer trust before the rate is even discussed

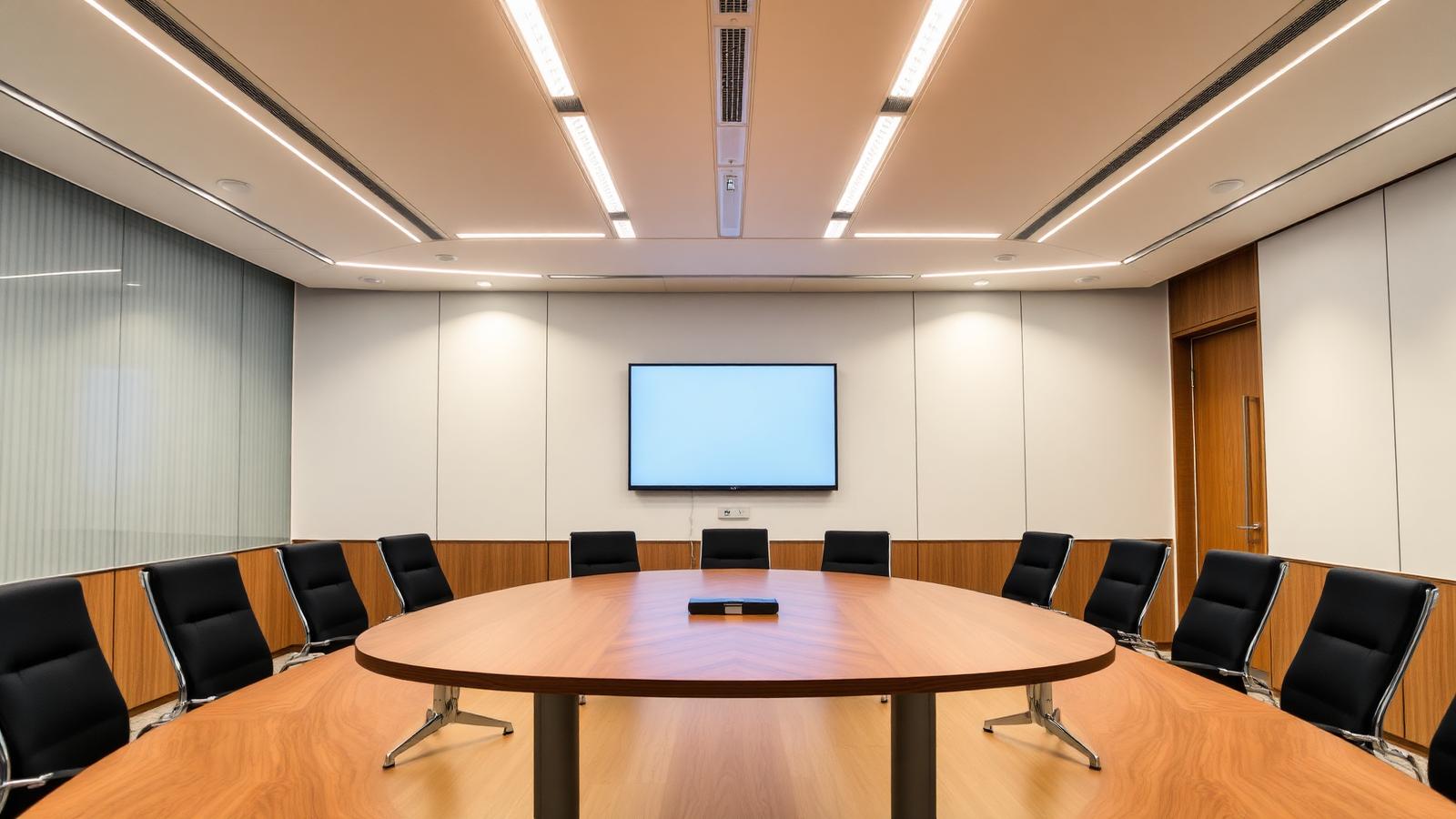

Conference room — tunable white DALI-2 lighting tuned for video calls. Glare-free UGR<16 keeps screens readable and faces well-lit on Zoom.

2.6 Facade & Signage

• Target: Even wall wash on stone/glass facade, internally-illuminated channel-letter signage at 800–1200 cd/m² (visible but not garish)
• CCT: 3000K facade wash (matches interior warmth visible through glass), 4000K signage (legibility)
• Compliance: IDA dark-sky compliance (cutoff angle 0°), local ordinance lumen caps

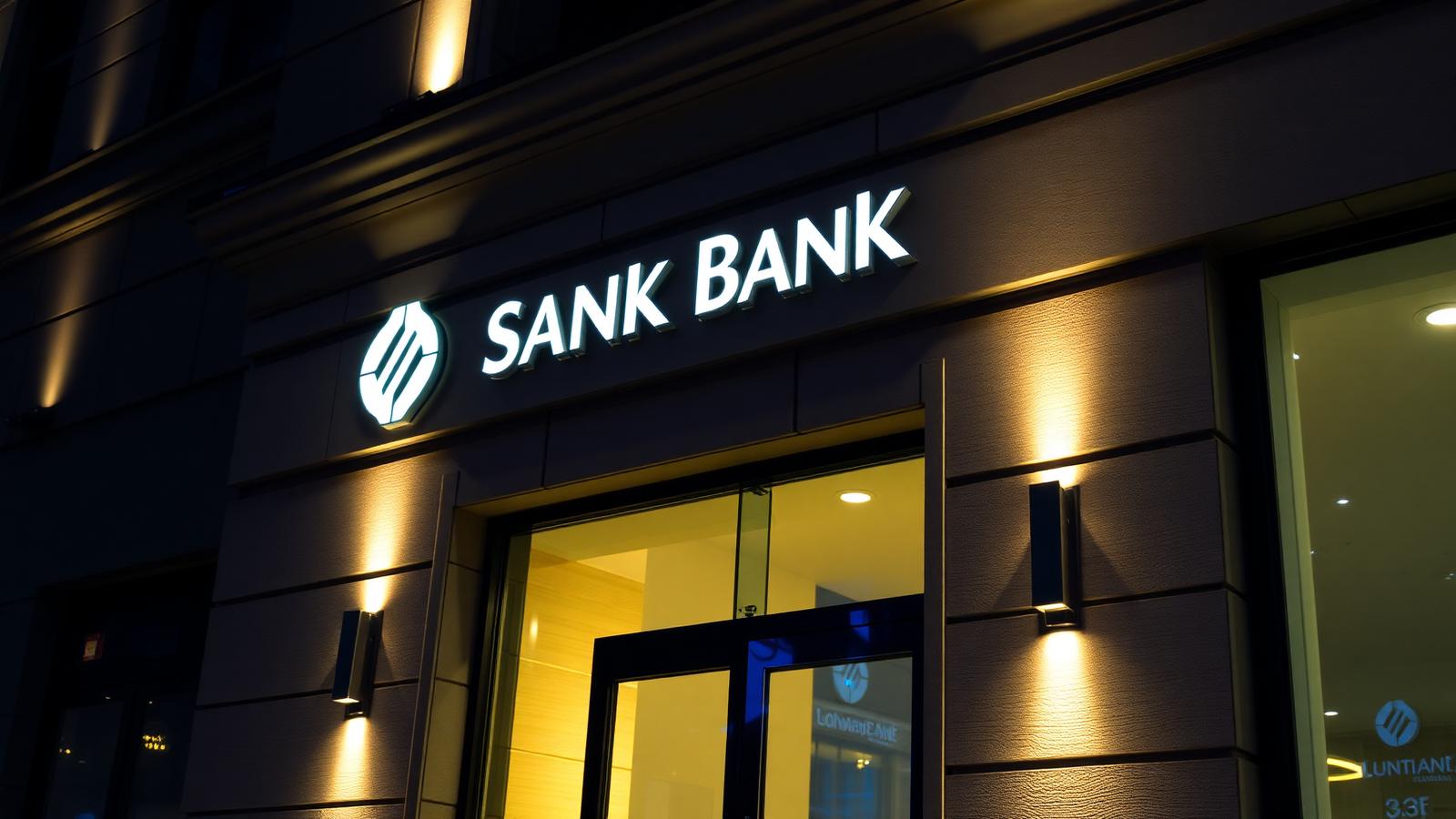

Facade at blue hour — linear wall washers graze the stone facade with 3000K warm light. Signature lighting that reads "established, trustworthy" from 200 m down the street.

2.7 Vault, Strong Room, Back Office

• Vault: 200 lux, 4000K, sealed IP54 fixtures, emergency-circuit backup mandatory
• Cash counting room: 750 lux, CRI ≥90 (note authentication needs accurate color), no flicker
• Open back office: Standard EN 12464-1 office levels — 500 lux, UGR<19, daylight harvesting

---

3. Product Matrix: What to Specify (XHLWX Recommendations)

Zone	XHLWX Series	CCT	CRI	UGR	Lumen Output	Control
Banking Hall — Cove	LX-COVE-PRO 24V	3500K	95	—	1200 lm/m	DALI-2 / 0–10V
Banking Hall — Downlight	LX-DL-90 9W	3500K	95	<19	900 lm	DALI-2
Teller Counter	LX-LIN-ASY 30°	3500K	95	<16	1100 lm/m	DALI-2
VIP Lounge — Decorative	LX-PENDANT-LUX	2700K	97	—	dimmable	Casambi BLE
ATM Zone	LX-DL-AG 12W anti-glare	4000K	90	<16	1300 lm	On/Off + occupancy
Conference Room	LX-LIN-TW Tunable	3000–5000K	95	<16	1600 lm/m	DALI-2 DT8
Facade Wash	LX-WW-IP66 24W	3000K	80	—	2400 lm	DMX / DALI
Vault	LX-DL-IP54 15W	4000K	80	—	1500 lm	Hardwired + EM pack

The 4 European hot-button features XHLWX bakes into every fixture:

1. Energy efficiency >160 lm/W — meets the strictest EU EcoDesign 2024 thresholds; cuts branch lighting OpEx by 35–60% vs 2018 LED retrofits.
2. High efficacy + low binning variance — McAdam ≤3 SDCM ensures no visible CCT drift across 200+ fixtures in the same hall.
3. UGR<19 (UGR<16 in critical zones) — engineered with proprietary micro-prismatic optics; verified per CIE 117.
4. DALI-2 + Casambi dual-protocol — same fixture works whether the bank's BMS is wired (DALI-2 certified) or wireless (Casambi BLE mesh). One SKU, two integration paths.

---

4. Case Study: A 220-Branch Tier-2 European Bank Retrofit

In 2025, XHLWX supplied lighting for the rolling retrofit of a top-15 European retail bank's 220-branch network. The brief: replace 14-year-old T5 fluorescent + first-gen LED retrofits with a single, brand-coherent 2026-ready spec.

Before:

• Mixed 3000K/4000K/4500K across branches — zero brand consistency
• Average CRI 78, R9 = 12 (skin tones poor, marketing photography awful)
• Connected load: 18 W/m²
• 28% of branches had at least one CFPB-equivalent customer complaint about "harsh" or "depressing" lighting in the prior 12 months

After (XHLWX V7 spec):

• Unified 3500K banking hall / 2700K VIP / 4000K ATM — documented in a 47-page brand lighting standard
• CRI 95, R9 ≥ 90 across every fixture
• Connected load: 7.2 W/m² (60% reduction)
• DALI-2 + Casambi gateway per branch; central monitoring of all 220 sites from HQ
• Estimated 7-year energy savings: €4.8M
• LEED v4.1 ID+C certification on all newly-fitted-out branches

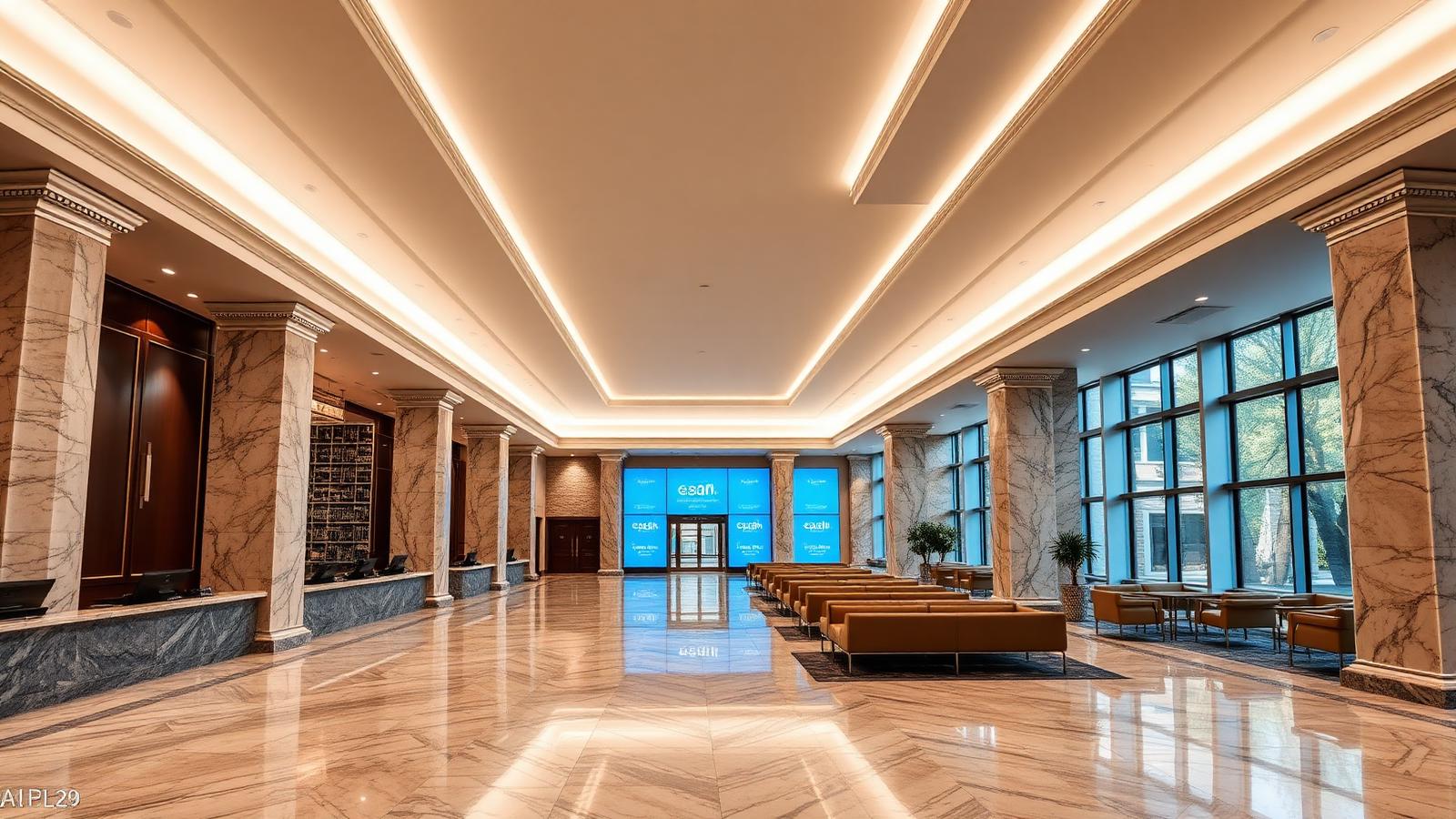

Project completion shot — unified 3500K cove + 95 CRI downlights across the 220-branch network. The same lighting language now greets a customer in Madrid, Munich, and Milan.

3 quantified outcomes the bank's CFO confirmed in writing:

• Branch NPS up 14 points in the 12 months following the retrofit (independent quarterly survey)
• Loan officer video-call no-show rate down 22% (better face lighting = customers actually keep the appointment)
• 34 fewer CFPB-equivalent customer complaints about branch environment in year 1

---

5. FAQ + Next Step

Q1. We're a small community bank with 6 branches and a $400K lighting budget. Where do we get the most ROI? A. Two zones: VIP/advisory (drives wealth-management revenue) and the teller counter (drives every-customer perception). Spend 60% of the budget there with 95 CRI + UGR<16 fixtures. Use lower-spec but still UGR<19 fixtures in back office and storage.

Q2. Is DALI-2 really necessary, or is 0–10V enough? A. For a single-branch refit, 0–10V is fine. For any bank rolling out a brand standard across multiple sites — or planning circadian / scene-based control in VIP rooms — DALI-2 (and ideally DALI-2 + Casambi gateway) is the only protocol that survives 15 years of fixture turnover without re-cabling.

Q3. How do we balance daylight harvesting with security camera image quality? A. Use daylight sensors with a 400-lux floor cap in customer zones (so cameras always have minimum exposure) and a 300-lux floor cap in the vault corridor. Sensors should dim — never switch off — fixtures during daytime.

Q4. CFPB / FCA-equivalent flicker compliance — what's the actual threshold? A. Specify fixtures with PstLM ≤ 1.0 and SVM ≤ 0.4 (per IEEE 1789 and CIE TN 006). XHLWX publishes these on every datasheet; many low-cost imports do not.

Q5. Can the same fixtures meet both LEED v4.1 and WELL v2? A. Yes — but only if you specify CRI ≥ 90, R9 ≥ 50, melanopic EDI ≥ 200 in primary work zones (WELL L03/L04), and verify lumen-per-watt thresholds for LEED EA credit. XHLWX provides a one-page LEED+WELL compliance sheet per project.

---
