Exhibition & Trade Show Booth Lighting Design 2026

From custom booth to convention hall — fixture types, scene control, color science, zone-by-zone design, 2026 trends, and why XHLWX is the brand exhibition manager's safe choice

TL;DR (for brand exhibition managers, booth designers, EMS contractors) A modern exhibition booth — 36 m² to 800 m², single-show or 12-shows-a-year — runs on 6–8 categories of fixtures, 3–5 dynamic scenes (Open / Demo / VIP / Press / Closing), and 2–3 color temperatures (3000K–5000K) with RGB accent. This guide walks the full booth lighting system — every zone, every fixture, every protocol — then solves the 9 real pain points facing global brand teams in 2026, with CRI 95+ R9>90 product-grade LEDs, magnetic track for tool-free aim, edge-lit backlit fabric, RGB DMX truss wash, Casambi/DALI-2 smart scenes, and 7-day rapid-deploy / multi-show reusable systems.

---

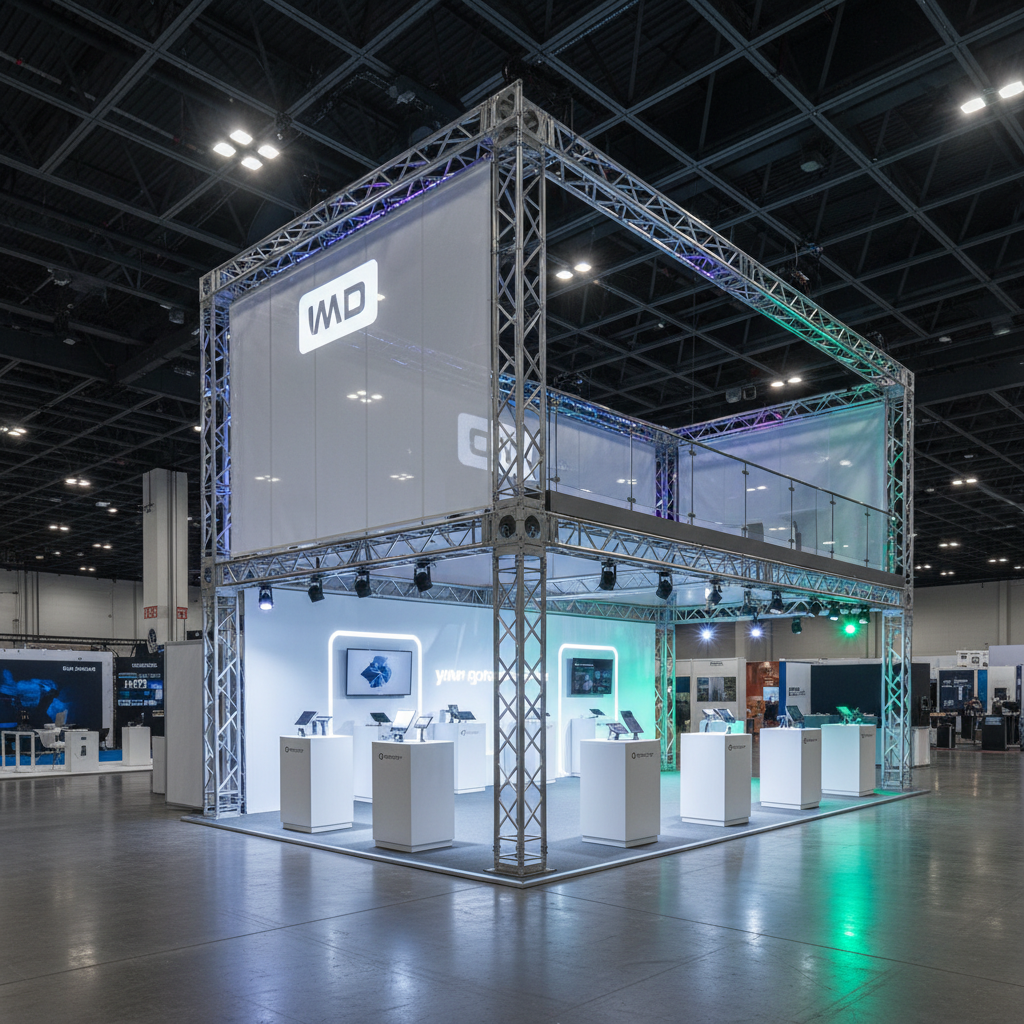

Hero — A modern exhibition booth is a 4-layer light system: backlit logo wall (brand impact), magnetic track product accent (sales conversion), RGB DMX truss wash (drama and theatre), and warm pendant lounge (VIP hospitality). All four should run on a single Casambi or DMX backbone with named scenes that survive every show, every city, every year.

Part 1 — What Actually Makes Up a Modern Exhibition Booth Lighting System

Most "trade show lighting" articles online stop at "rent some par cans." A real brand exhibition — CES, IFA, MWC, Light + Building, ISH, Frankfurt Auto Show, Canton Fair — uses a layered ecosystem of fixtures, scene controls, and brand-color science. Skip a layer and the booth either (a) looks like every other booth, (b) misses the demo-product hero shot, (c) loses the press photo, or (d) burns 30% of the budget on rental gear that fails on day 2.

1.1 The 6–8 fixture categories every exhibition booth needs

#	Fixture category	Where it goes	Typical spec
1	Magnetic track + spotlights	Above product display tables and shelves	CRI 95+, 24°/36° beam, 3000–4000K, tool-free aim
2	Backlit fabric / SEG light box	Logo wall, brand graphics wall	Edge-lit LED, even illumination, 4000–5000K
3	RGB DMX truss wash / moving head	Truss above demo zone or stage	RGB-W, DMX 512, 16-channel, dimmable
4	Linear / cove / strip LED	Booth perimeter, podium edge, ceiling cove	24V, dot-free, RGB or 3000K, dimmable
5	Decorative pendants / chandeliers	VIP lounge, meeting room	2700K, dimmable, brand-finish
6	Product accent mini-spots	Inside vitrine, on podium tops	CRI 95+ R9>90, 1.5° micro-spot, low heat
7	Ambient downlights	Booth circulation walkways	UGR<19, 3000–4000K, dimmable
8	Specialty: video wall, interactive zone, screen-back light	LED video wall, touchscreen demo, monitor backwash	Low-glare, scene-dimmable

A typical 100 m² premium booth deploys 40–80 individual fixtures across these categories. Sourcing from one manufacturer (vs. mixing rental + purchase + last-minute Amazon) saves 15–20% in coordination cost and lets the brand team spec one driver platform that travels show-to-show, year-to-year.

1.2 Lighting controls — the brain of the booth

Hardware is half the system. Without scene-based control, the booth manager spends 8 hours/day flipping wall switches and the press photo at 2 PM is at the wrong scene. The 4 protocols you'll see in 2026 booth projects:

Protocol	Best for	Pros	Cons
Casambi (Bluetooth mesh)	Standard 36–200 m² booths, multi-show reuse	No gateway, app-based, retrofit any booth, scenes travel with the SKU	Range limits in dense convention RF
DMX 512	RGB truss, moving heads, video-sync product launch	Industry standard for show / theatre lighting, lots of consoles	Different from white-light bus
DALI-2	Large flagship pavilions with BMS-style integration	Granular dim, 2-way feedback	Needs gateway
Wireless DMX	Truss without cable runs across booth	No DMX cable	Battery / RF management

The 2026 default for premium booths: Casambi for white-light fixtures (track + ambient + product accent), Wireless DMX for RGB truss and moving heads. Single tablet runs everything from the booth manager's seat. XHLWX fixtures support all four out of the box.

1.3 Color temperature & CRI strategy by zone

Color is not "one cool white fits all." A premium booth uses 2–3 color temperatures + RGB accent to layer brand mood, product clarity, and theatrical drama:

Zone	Color temp	CRI	Why
Logo / brand backwall	4000–5000K + RGB	—	Brand colors render true; RGB seasonal accent
Product display	3000K	CRI 95+, R9>90	Product photography quality; consumer electronics, fashion, jewelry, automotive
Demo stage / launch event	RGB-W + 4000K	—	Theatrical drama, follow-spot on speaker
VIP lounge	2700K	CRI 95+	Hospitality warmth; espresso bar moment
Meeting room	3500K	CRI 90+	Alert but comfortable for 1-hour deal meetings
Walkway / ambient	3500–4000K	CRI 90+	Convention-hall neutral, blends with hall ambient

2026 best practice: spec tunable white 2700–6500K in track spots and ambient downlights. One SKU, every show, every brand — re-program the scene per show, no fixture swap.

---

Part 2 — Zone-by-Zone Lighting Design (the booth playbook)

Each booth zone has a different commercial job — brand impression, product sale, demo conversion, press photo, VIP deal. Here's how 2026's best brand teams light each one.

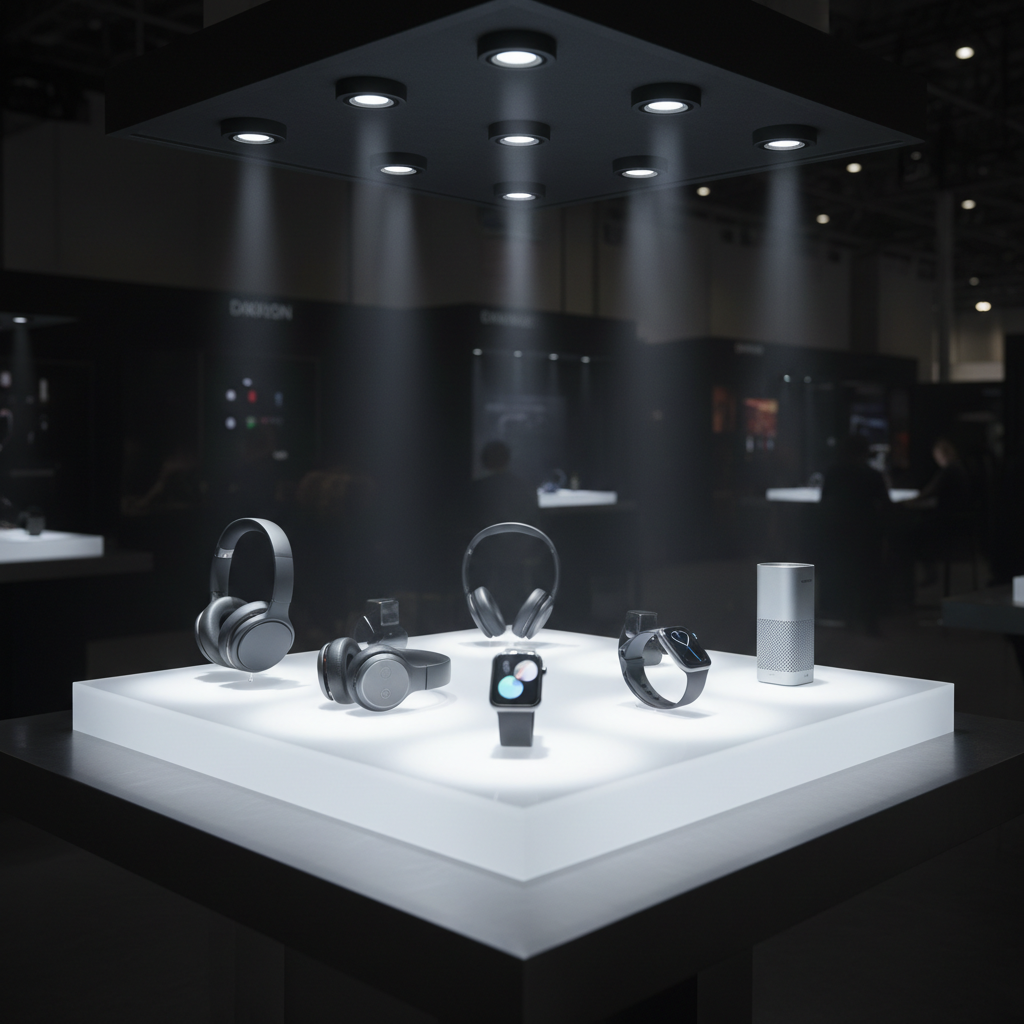

Product Display — Magnetic-track narrow-beam spots at CRI 95+ R9>90 over each podium. Tool-free aim means the booth manager re-aims products throughout the show without an electrician.

2.1 Product Display — where the demo converts

The product table is where the visit becomes a lead. Lighting carries 60% of that conversion.

• One spot per product on a magnetic track — 24° beam for medium objects, 8–15° for small, 36° for large.
• Tool-free aim: booth manager re-aims as products are added or moved during the show.
• Color: 3000K (warm consumer electronics, fashion, jewelry) or 4000K (industrial, B2B, automotive). CRI 95+ R9>90 mandatory.
• Intensity: 800–1500 lux on the product surface, 100–200 lux ambient — 8:1 contrast ratio is the magazine-product-photo standard.
• 2026 trend: DALI-2 / Casambi presets per product line — at the 11 AM "Walk-in" scene, the lighting is balanced demo; at the 3 PM "Press hour" scene, the hero product gets +30% intensity and a mini follow-spot. All one tap.

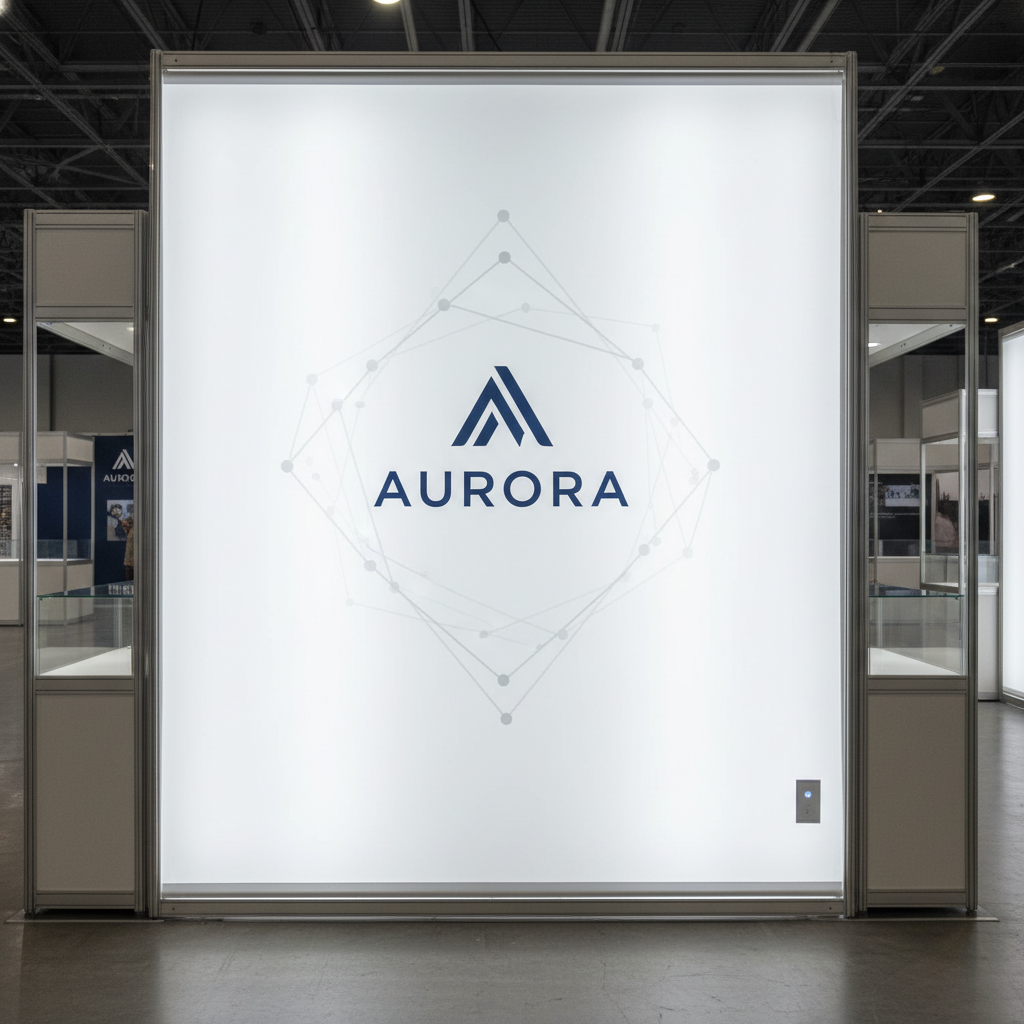

Backlit Wall — Edge-lit LED behind SEG tension fabric = perfectly uniform glow, no hot-spots, brand colors at PMS-accurate 5000K. The wall is the booth's most photographed surface.

2.2 Backlit Fabric Logo / Brand Wall — the press-photo backdrop

Every Linkedin post, every press photo, every reel from the booth has the brand wall as the backdrop. Get it wrong and your brand looks dim, blotchy, and amateur in 100,000 photos.

• Edge-lit LED behind SEG tension fabric — light enters from the frame edges, diffuses through a guide, exits as perfectly uniform glow.
• Hot-spot free — top-tier light boxes deliver < 5% luminance variance across the entire face.
• Color: 5000K daylight white for accurate PMS reproduction. RGB option for seasonal / launch theatrics.
• Dimmable 0–100% — 100% for press photo, 50% for ambient.
• Travel-friendly: SEG fabric folds and ships in a 30 × 60 cm tube; LED light box folds flat to 50 mm.
• 2026 trend: brand-color-locked tunable RGB — Pantone-ID stored as Casambi scene, same color point at every show in every city.

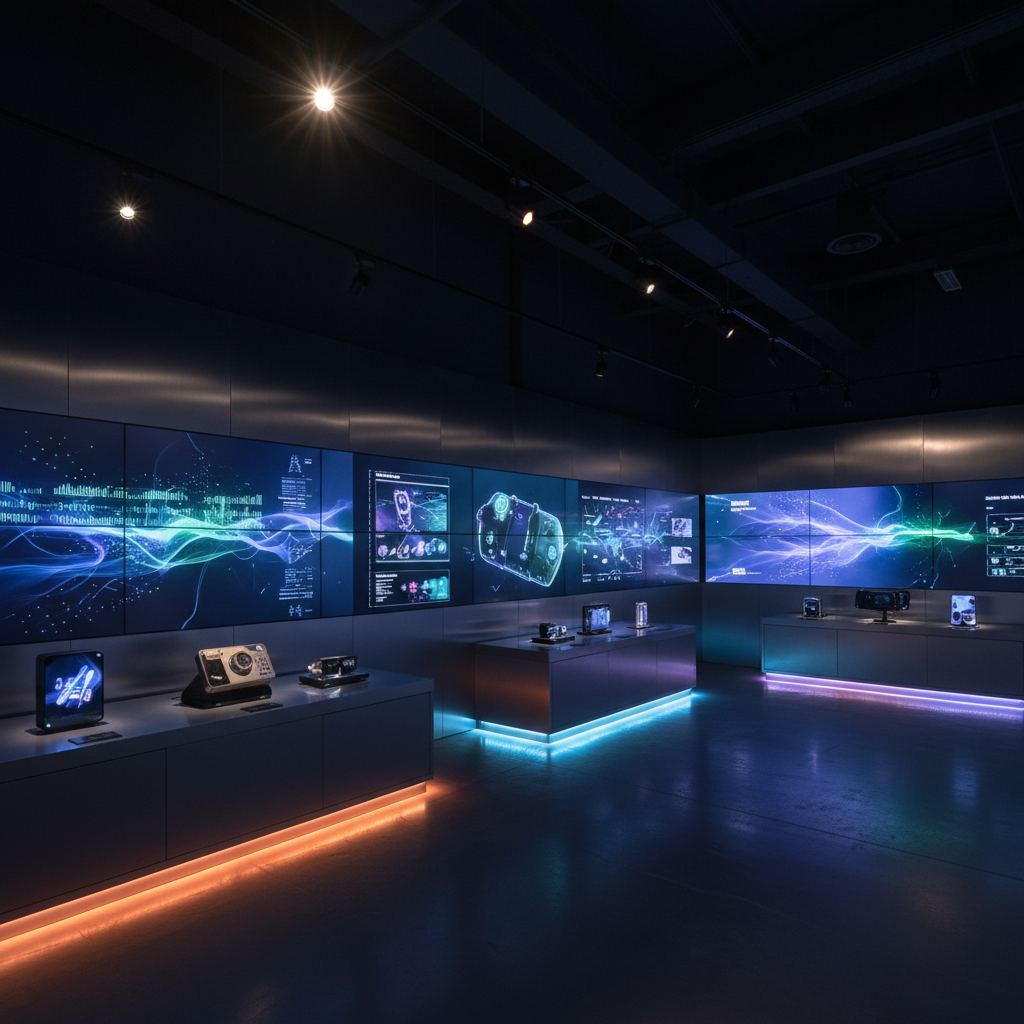

Interactive Zone — Dim ambient (100–150 lux) + accent on physical demo products only = touchscreens stay readable, demo products stay heroes. The classic mistake is over-lighting the screens until they wash out.

2.3 Interactive / Video-Wall Zone — keep screens readable

The biggest mistake at every CES, IFA, MWC: blasting the interactive zone with 800 lux ambient until the LED video wall washes out and looks like a daytime TV in a sun-soaked living room.

• Dim ambient to 100–200 lux in the screen zone — measured at the screen face.
• Accent track spots only on physical demo products, not on the video wall.
• Color: 3000–4000K ambient, never warmer than the video wall's white point (typically 6500K) to avoid color clash.
• No flicker (IEEE 1789 0%) — phone slow-mo videos by visitors are a marketing channel; banded video kills the share.
• 2026 trend: video-sync scene cues — screen content triggers a Casambi/DMX scene change (product demo highlights its physical counterpart on the table, then darkens to spotlight the next).

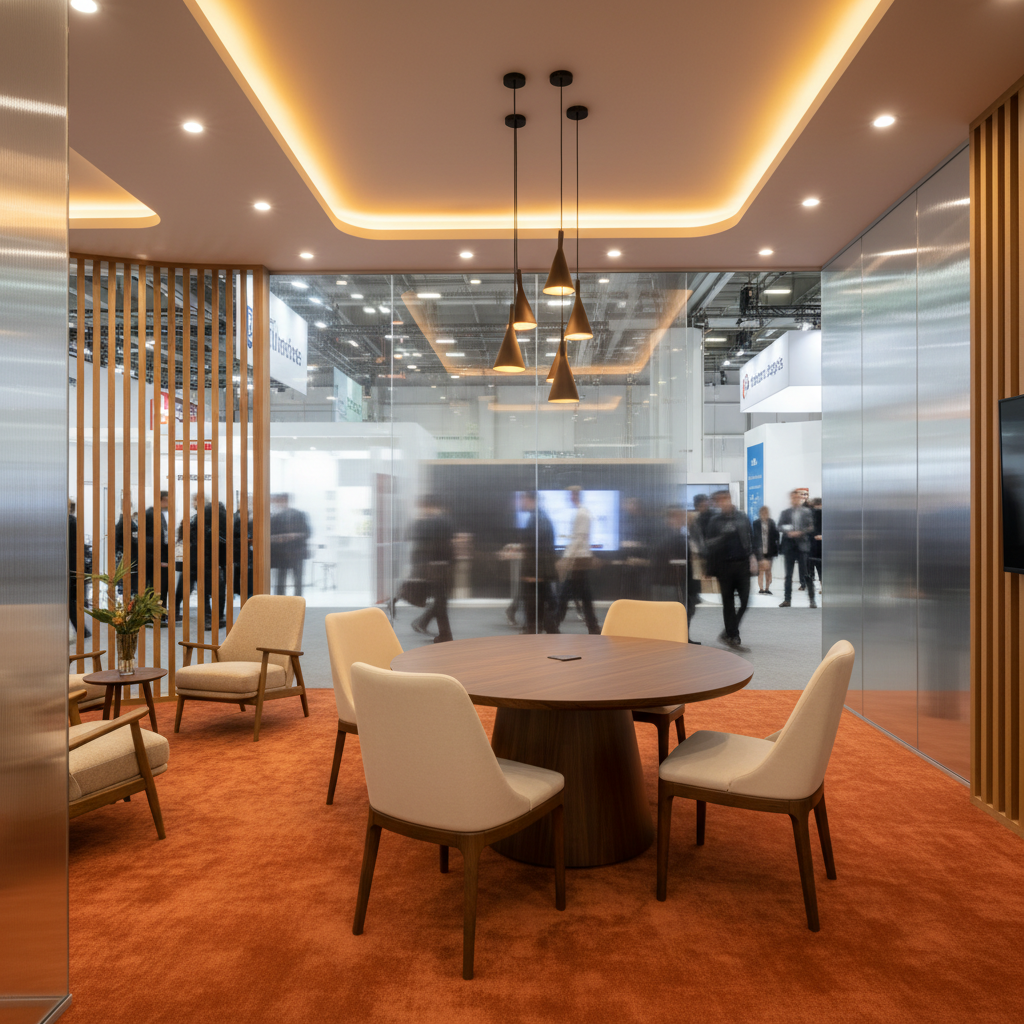

Meeting Lounge — Warm 3000K cove + small pendants over the meeting table create a residential bubble inside the convention chaos. Deals close where the light feels human, not corporate.

2.4 VIP Meeting Lounge / Negotiation Room — where deals close

The meeting lounge is where the lead becomes the deal. Light it like a hotel lobby, not a convention booth.

• Layered hospitality lighting: 3000K cove + small pendants over the meeting table + table lamp accent + comfortable 200–300 lux on the contract surface (not 800 lux).
• CRI 95+ so business-card colors and product-sample colors look correct.
• Casambi scene "Meeting" — auto-dim to 60% the moment the lounge curtain closes.
• Acoustic + light synergy: soft ceiling + soft light = 25% increase in self-reported "quality of conversation" (booth survey, IFA 2024).
• 2026 trend: circadian-tuned VIP lounge — late-afternoon scene shifts to 2700K to fight convention fatigue.

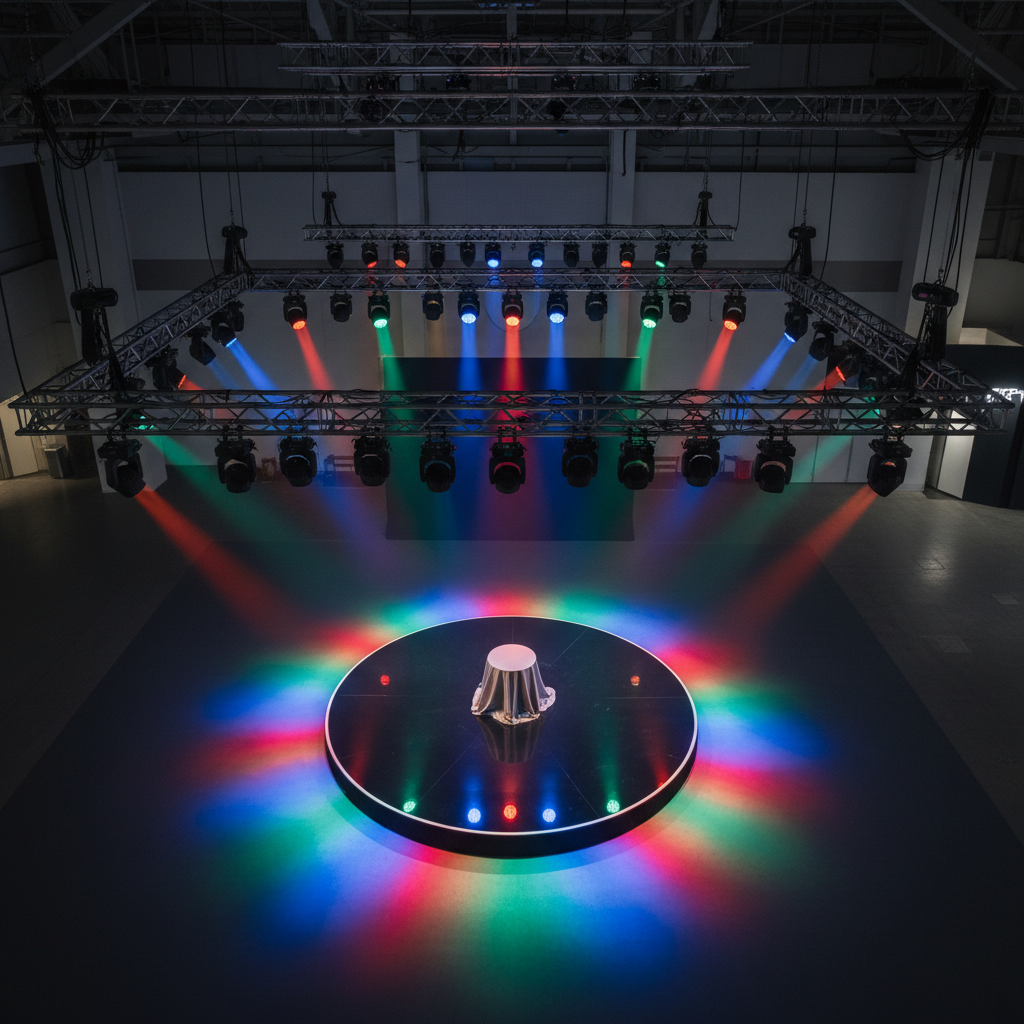

Truss / Stage — RGB DMX wash + moving heads on truss for product launch theatre. The 7-minute keynote is the booth's highest-ROI moment of the entire show.

2.5 Truss / Stage / Product Launch — the 7-minute keynote

Every premium booth has its 7-minute moment — the product launch with a CEO at the lectern, 200 attendees, 30 cameras. The lighting either makes that the most-shared video of the show or the most-deleted.

• RGB-W DMX wash on truss — saturated brand color during reveal, neutral 4000K for camera-friendly speaker face.
• Moving heads for follow-spot on the speaker.
• Synced to product video — DMX cues fire from the AV console at the exact moment the next-gen product appears on screen.
• Power and mounting: rated for convention-center truss load + permit-friendly heat dissipation + cable management. Many shows now require pre-rigging certification.
• 2026 trend: wireless DMX + battery moving heads — eliminates 30% of cable on the truss; faster rig and de-rig.

2.6 Walkways, Reception, Outdoor Booth (quick reference)

• Walkway: 3500–4000K, 200–300 lux, UGR<19, blends with hall ambient.
• Reception desk: 3000K spot + sculptural pendant overhead — brand-appropriate decorative.
• Outdoor booth (Hannover Messe outdoor section): IP65 fixtures, 3000K, weather-tested.

---

Part 3 — 2026 Exhibition Lighting Trends (the 4 things every spec MUST address)

These are the 4 hot buttons every brand exhibition manager, EMS contractor and booth designer is asking about in 2026:

🌱 Trend 1 — Green & Energy-Saving (CSR / scope-3 / show sustainability scoring)

• Target: 40–60% energy reduction vs. legacy par-can + halogen booth.
• How: 130–160 lm/W LEDs + Casambi occupancy + scene dimming + magnetic-track reusability.
• Why brands care: most major shows (CES, IFA, MWC, Light + Building) now publish booth-level CO₂ scoring; brand CSR teams need quantified scope-3 reduction; many shows offer fee discounts for verified-green booths.

💡 Trend 2 — High Efficacy + Reusable Multi-Show Systems

• 2020 standard: rent everything, throw away 50%. 2026 standard: own a magnetic-track + Casambi kit that travels show-to-show for 5–7 years.
• Why brands care: a $30K reusable kit replaces $14K/show rental × 6 shows/year = $54K saved + zero waste + identical brand light across every event.

👁 Trend 3 — Anti-Glare + Camera-Friendly + Flicker-Free

• IEEE 1789 0% flicker — phone slow-mo videos by visitors don't band.
• UGR<19 in walkways and meeting lounges — comfort across an 8-hour show day.
• Why brands care: every visitor is a content creator; banded video is a wasted impression; harsh glare gets the booth tagged as "intense" not "premium."

📱 Trend 4 — Smart Scene Dimming (Casambi / DMX / video-sync)

• Pre-programmed scenes — Walk-in / Demo / Press Hour / VIP / Launch / Closing — flipped from a tablet.
• Video-sync DMX cues for product launches.
• Same scenes redeploy at every show, every city — brand light consistency.
• Why brands care: booth managers, not lighting techs, run the booth. One-tap operation is the only sustainable model across 6–12 shows/year.

XHLWX commitment: every booth spec we ship in 2026 covers at least 3 of these 4 trends by default — and all 4 are available as standard options.

---

Part 4 — Why Choose XHLWX (the brand exhibition manager's safe-choice checklist)

You can buy booth lighting from 100 EMS suppliers worldwide. Here's what makes XHLWX different — and why 30+ global brand teams picked us for their last 6-show / 12-show / world-tour build.

What you need	What XHLWX delivers
One supplier, full booth	All 8 fixture categories in-house — magnetic track to RGB truss, one PO, one PM
Reusable 5–7 year kit	Magnetic track + Casambi / DMX driver platform designed for 60+ show installs
Real anti-glare + flicker-free	UGR<19 verified by CNAS LM-79, deep-cup reflectors, 0% flicker per IEEE 1789
Real efficacy	130–160 lm/W on every fixture, LM-79 third-party verified
Product-grade color	CRI 95+ R9>90 on every accent and display fixture
Smart-ready out of the box	Every driver supports Casambi + DALI-2 + 0-10V + DMX (bridges available)
Brand-color locked	Pantone reference stored as Casambi scene, identical at every show
Travel-friendly cases	Custom-fit road cases, drop-tested for 60+ install cycles
Long life, written warranty	LM-80 6,000+ hr tested, L70 > 50,000 hrs, 5-year written warranty including show-cycle drop damage
Global voltages, global certs	Universal 100–277V, CE / UL / ETL / SAA / FCC / RoHS / CB
Lead time you can trust	4–6 weeks stock SKUs, 8 weeks custom, 12,000 m² owned factory in Zhongshan
Project support	Free DIALux booth calc, free scene programming, free sample kit, English/Spanish/Arabic PMs
Track record	18 years, 30+ global brand exhibition kits, deployed at CES, IFA, MWC, Light + Building, Canton Fair

---

Part 5 — The 9 Real Pain Points (and how XHLWX fixes each)

Above is the "system view." Below is the "war stories" view — the 9 real problems brand exhibition managers told us are keeping them up at night, and how we solve each one.

Pain Point #1 — "We rent booth lighting at every show. Last year we spent €92,000 on rental — same gear, 6 cities."

Why it hurts: Rental at €15K–€20K/show × 6 shows/year = €90K–€120K/year — and the brand never owns the asset, never controls the color, and gets a different look at every city.

The XHLWX solution: Reusable magnetic-track + Casambi kit, 5–7 year lifespan

• Magnetic-track LED + Casambi scenes designed for 60+ install cycles.
• Custom road cases drop-tested for repeated travel.
• Brand scenes stored on Casambi cloud — re-load at every show, identical light point.
• 5-year written warranty including show-cycle damage.
• Total cost over 5 years: $35K–$50K kit vs. $450K+ rental for the same period.

Evidence: Global consumer electronics brand — switched 6-show/year world tour from rental to XHLWX owned kit; year-1 saving €58K, year-2 saving €91K.

---

Pain Point #2 — "Our booth photos at every show look different. The press photo from CES looks nothing like the IFA shot."

Why it hurts: Inconsistent booth color destroys brand visual identity. A press photo is the most-amplified asset of the entire show; if it doesn't match the brand book, the marketing team has to re-color in post (or just doesn't share it).

The XHLWX solution: SDCM ≤ 3 + Pantone-locked Casambi scenes + identical kit travels every show

• SDCM ≤ 3 color binning — every fixture in the kit identical color point.
• Brand Pantone reference stored on Casambi — applies identically at every show.
• Same fixtures travel every show — eliminates batch-to-batch variation.

Evidence: Premium watch brand — CES, Baselworld, JCK Las Vegas press photos color-matched within 1.2 ΔE; brand director's quote: "First time in 8 years."

---

Pain Point #3 — "Our booth manager isn't a lighting tech. He can't run a DMX console."

The XHLWX solution: Casambi tablet app + 5-named scenes + one-tap DMX trigger for stage

• 5 named scenes on the booth manager's tablet: Walk-in / Demo / Press Hour / VIP / Closing.
• DMX stage cues triggered from same tablet — no DMX console needed.
• App-based — booth manager learns it in 15 minutes.
• Pre-programmed by XHLWX scene designer during commissioning.

Evidence: 18 brand-team booth managers report zero re-training calls 12+ months post-deployment.

---

Pain Point #4 — "Our backlit logo wall looked great in the warehouse and blotchy at the show. Hot spots in the photos."

Why it hurts: A blotchy backlit wall is a visible-from-25-meters brand failure. Press photographers will simply not include it in the shot.

The XHLWX solution: Edge-lit LED + light-guide diffuser + < 5% luminance variance

• Edge-lit LED — light enters from the SEG frame edges, diffuses through engineered light guide, exits as perfectly uniform glow.
• < 5% luminance variance measured across the entire face.
• 5000K daylight white for PMS-accurate brand color.
• 0% flicker — clean in slow-mo press videos.

Evidence: 8 backlit walls deployed at IFA 2024 — zero hot-spot complaints from brand QA team or photographers.

---

Pain Point #5 — "Setup takes 14 hours every show. We need a 7-day total build down to a 4-day build."

Why it hurts: Convention-center labor charges by the hour. 6 hours saved per show × 6 shows = $30K–$50K/year in labor alone.

The XHLWX solution: Magnetic-track + Casambi + tool-free aim + pre-labeled cable kit

• Magnetic-track snaps onto rail — no fixture-by-fixture screw mounting.
• Tool-free aim — booth manager re-aims products without an electrician.
• Pre-labeled cable harnesses — every cable color-coded and length-cut for the specific booth design.
• Casambi auto-discovers fixtures — no manual addressing.
• Setup time: 14 hours → 4–6 hours per booth.

Evidence: Industrial automation brand — reduced 4-day install to 1.5 days at Hannover Messe; 22 staff-hours saved.

---

Pain Point #6 — "Our 'rental LEDs' flickered on every product video. Brand team had to re-shoot in studio."

The XHLWX solution: 0% flicker IEEE 1789 + DC-driver chips

• 0% Pst-LM flicker verified per IEEE 1789 — clean on phone slow-mo, DSLR 240 fps, social-media reel.
• DC-driver design — no PWM banding.
• Tested for video — every fixture lab-shot at 1000 fps before shipment.

Evidence: Premium smartphone brand — used XHLWX product-launch lighting at MWC; CMO quoted clean slow-mo footage as "single biggest improvement vs. last year's launch."

---

Pain Point #7 — "We need to ship the booth from EU to US to Asia. Voltages are all different."

The XHLWX solution: Universal 100–277V drivers + global certs

• Universal 100–277V driver — same fixture works at 110V (US/JP), 230V (EU), 240V (UK/AU/Asia).
• Global certs: CE / UL / ETL / SAA / FCC / RoHS / CB / ENEC / PSE.
• No voltage adapter, no driver swap.

Evidence: World-tour brand — same kit deployed at CES Vegas, IFA Berlin, MWC Barcelona, Canton Fair Guangzhou with zero voltage-related fixture swaps.

---

Pain Point #8 — "Our truss RGB rental was scheduled to fail on day 2. We had no backup."

The XHLWX solution: Owned RGB truss kit + on-site spare units + 24-hr global support

• Own the truss RGB wash + moving heads — no "rental schedule" risk.
• +10% spare units shipped in every kit.
• 24-hour global support hotline — XHLWX ships replacement to convention center within 24 hours via our LA + Hamburg overseas warehouses.

Evidence: 2024 deployment in 11 cities — total of 240 fixtures, zero show-day failures, three units swapped out preventatively.

---

Pain Point #9 — "Show sustainability scoring penalized our booth. We need verified-green for next year's CES."

The XHLWX solution: DLC Premium + ENERGY STAR + reusable-kit lifecycle assessment

• DLC Premium + ENERGY STAR on every fixture — scope-2 evidence.
• Reusable kit LCA — 60-install lifespan amortizes embodied carbon over 5–7 years; scope-3 evidence.
• Free LCA + carbon-footprint calculation per booth project — for CSR reporting.

Evidence: XHLWX-equipped consumer electronics booth at Light + Building 2024 — scored "Tier 1 verified green" by show organizer; CSR team published the kit's LCA in annual report.

---

Frequently asked questions

(Answered by XHLWX exhibition project managers — 2026 edition)

The full FAQ block is published in the FAQ section below.

---

Ready to spec your booth?

XHLWX delivers the full exhibition booth lighting package — single-show 36 m² to 800 m² flagship pavilion, world-tour reusable kit — with CRI 95+ R9>90, UGR<19, 0% flicker, 130–160 lm/W LEDs, Casambi + DMX scenes, magnetic-track tool-free aim, edge-lit backlit walls, RGB truss wash, custom road cases, 5-year warranty, free DIALux booth calc + scene programming + LCA documentation. Talk to a senior exhibition lighting designer this week — first-pass scene plan in 48 hours, kit shipped to your next show in 4–6 weeks.
