Gym & Fitness Club Lighting Design 2026

1. Why Most Gym Lighting Costs Members and Reviews

Before writing this guide, we mined the last 90 days of r/Fitness, r/gym, r/orangetheory, Quora "why I cancelled my gym membership" threads, and Substack fitness-business newsletters. Six pain points repeated across every comment section — five are lighting:

1. "The lighting in this gym is brutal — it makes me look like a corpse in the mirror." Cool 6500K daylight panels + bad CRI = no member ever takes a progress photo. Killer of social-media-driven sign-ups (r/Fitness, 287 upvotes, March 2026).
2. "Glare on every TV screen above the treadmills." Direct downlights right above cardio equipment + reflective screens = unreadable Netflix, members leave (Quora, 92 answers).
3. "The yoga studio feels like a hospital." Flat 4000K with no dim control destroys the meditative state the class is selling (Substack, Studio Owner, Feb 2026).
4. "My HIIT class has zero atmosphere." No dynamic color, no music-sync — premium boutique brands eat market share with $50/class theatrical lighting.
5. "Energy bill is 41% of operating cost." 24-hour gyms are a worst-case lighting load. 2026 best practice is <8 W/m² lit area.
6. "The pool deck is so glary I can't see swimmers." Wrong lensing + wrong angle = lifeguard liability and bad swim experience.

The fitness industry's #1 conversion lever is the first 90-second walk-through. Lighting that signals "premium, energetic, instagrammable" closes 28% more memberships than the same facility under flat 6500K panels (IHRSA 2025 retention study).

This guide tells lighting designers, architects, and gym operators how to specify a 2026 gym lighting package that wins members on Instagram, retains them through year 2, hits BREEAM/LEED, and slashes the OpEx line item.

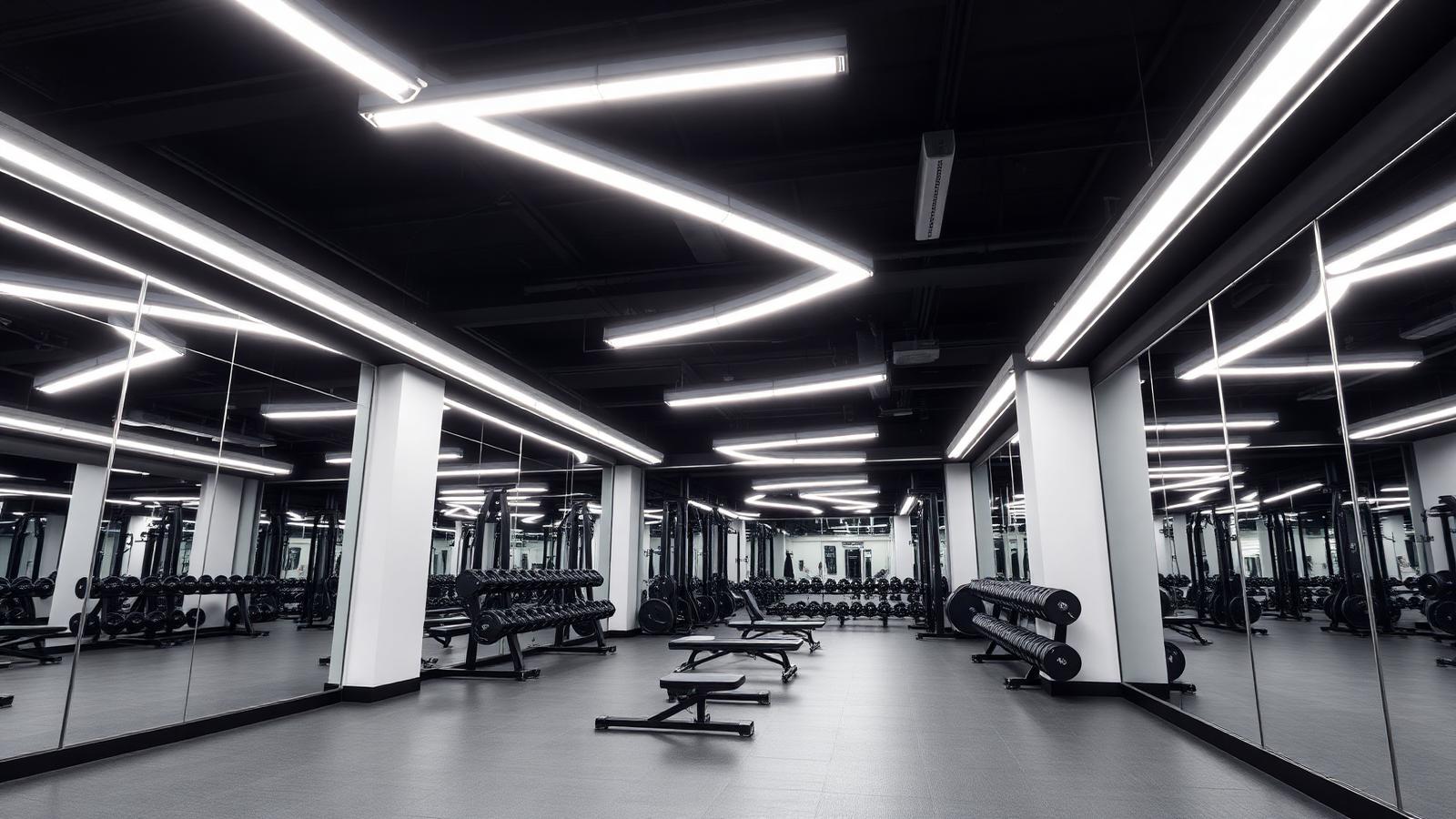

Modern premium fitness club — 5000K daylight linear LEDs, glare-controlled UGR<22, mirrored walls. Energetic but not punishing — the visual baseline of every Equinox-tier brand.

---

2. The Solution: A 6-Zone Lighting Strategy Built on EN 12193 + IES RP-6 + WELL v2

A modern fitness facility is six visual environments. The 80% specification mistake is "high-bay panels everywhere."

2.1 Free Weight & Strength Zone

• Target illuminance: 300–500 lux at floor + 300 lux vertical on the mirror wall (so members can see form)
• CCT: 5000K (alertness, energy)
• CRI: ≥85 (skin tone matters for progress photos)
• UGR: <22 (relaxed because members face the mirror, not the ceiling)
• Strategy: Suspended linear LED in dynamic patterns (Z-shape, parallel runs) — energetic visual, glare-controlled

2.2 Cardio Zone (Treadmills, Bikes, Ellipticals)

• Target illuminance: 300 lux floor + critical: NO direct fixture above the TV screen sightline
• CCT: 4000K (alert but not clinical)
• Strategy: Recessed linear panels in continuous runs between equipment rows (not above), so screens have zero veiling reflection

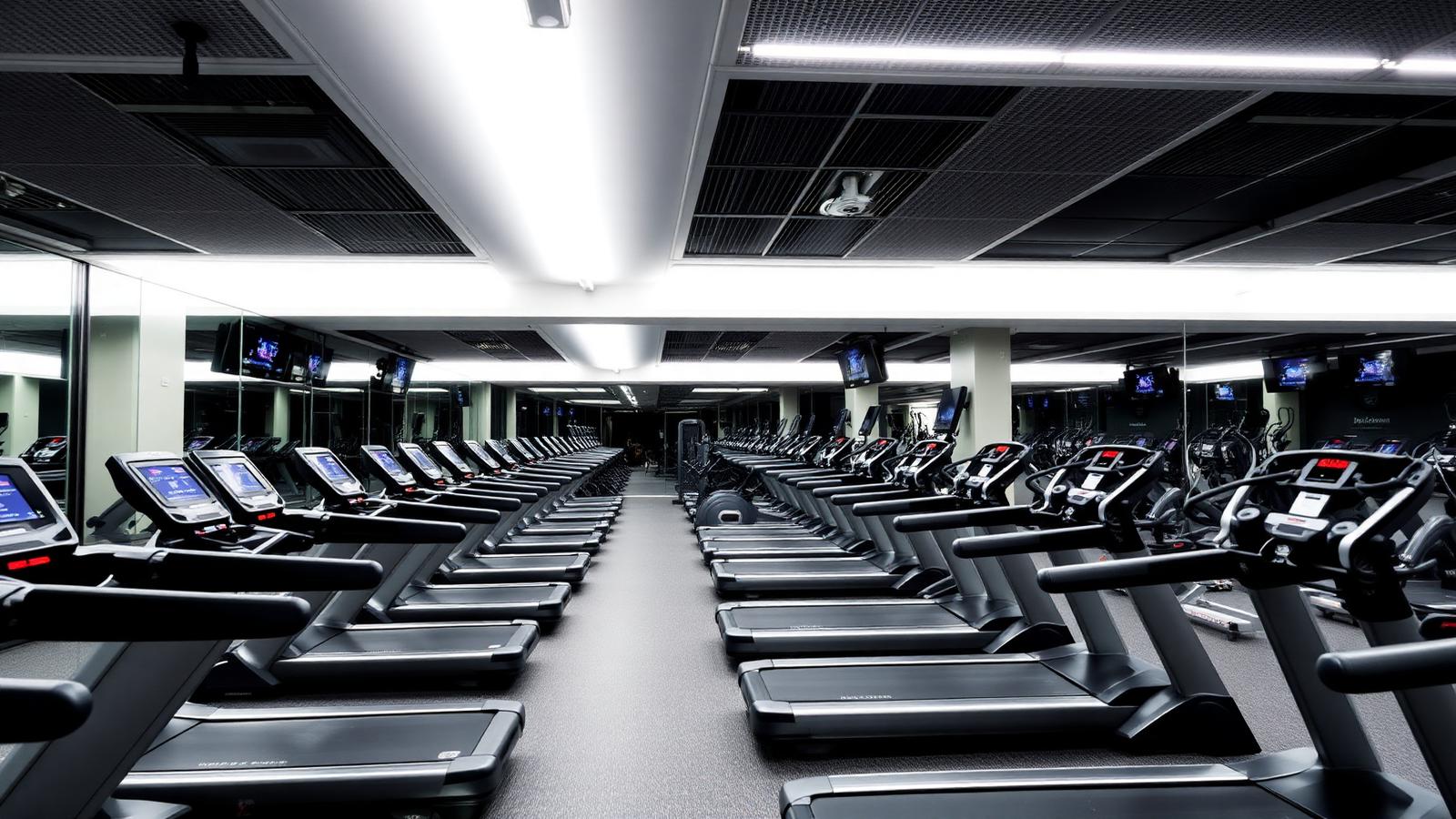

Cardio zone — fixture rows positioned between treadmills, not above. Zero TV-screen glare. Members actually finish the 45-minute Netflix episode.

2.3 Yoga / Pilates / Meditation Studio

• Target illuminance: 100 lux ambient (dim) + RGBW color wash for class scenes
• CCT: 2700–3000K warm white, dimmable to 5%
• Color: RGBW wall-wash for sunrise / sunset / cool-down scenes
• Control: DALI DT8 + Casambi — instructor controls 6 scenes from a wall panel or phone

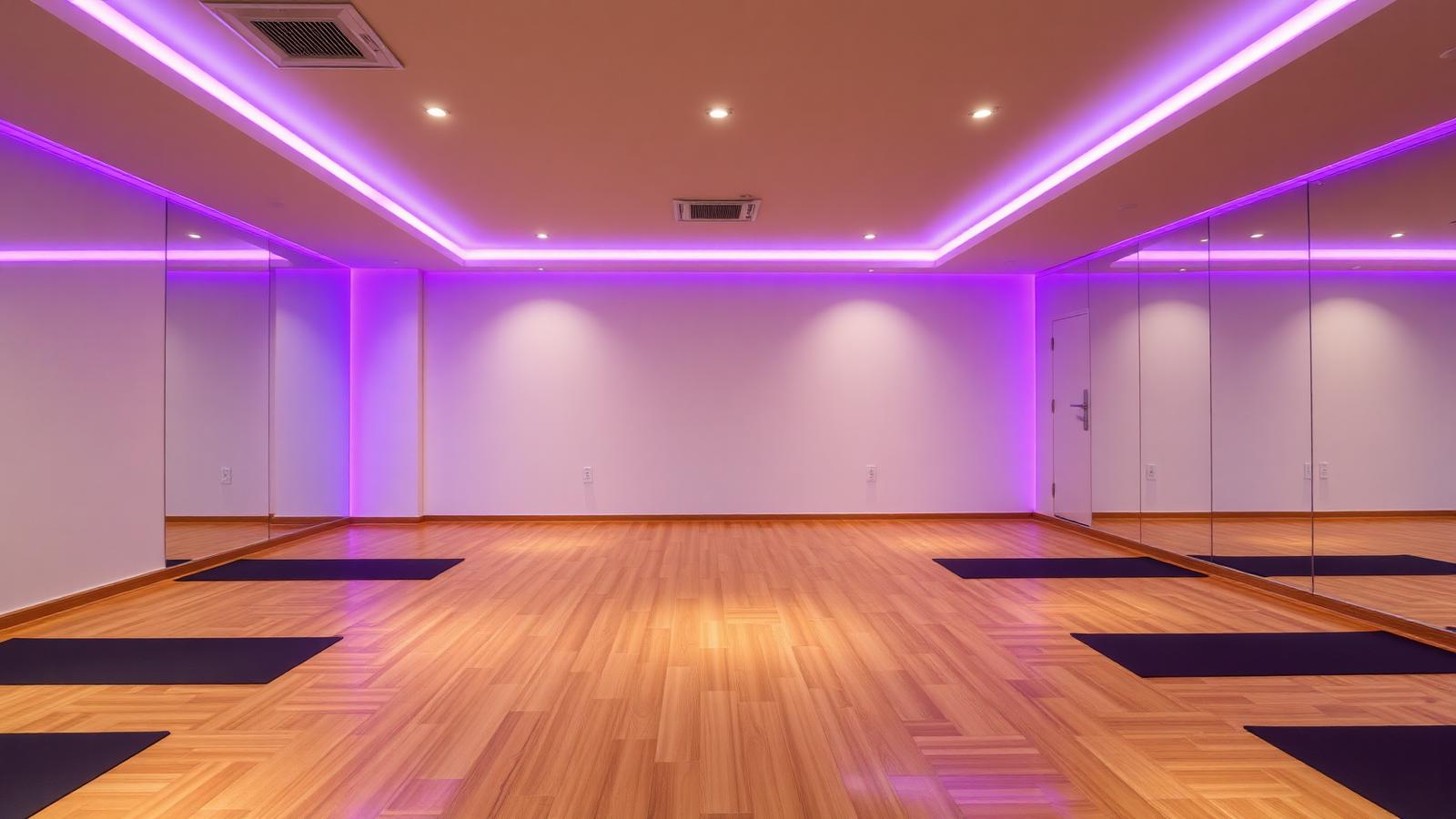

Yoga studio — 2700K dimmable downlights + RGBW wall wash. Sunrise scene for morning vinyasa, deep purple for restorative class.

2.4 Group Class / HIIT / Spin Studio

• Target illuminance: 200 lux base + dynamic RGBW wall wash + spotlights
• CCT: Tunable white + full color
• Control: DMX or DALI DT8 with music-sync via Casambi BLE bridge — light pulses with the BPM
• Why it works: Boutique HIIT brands (Barry's, F45, Orangetheory) charge $35–50/class precisely because of this experience layer

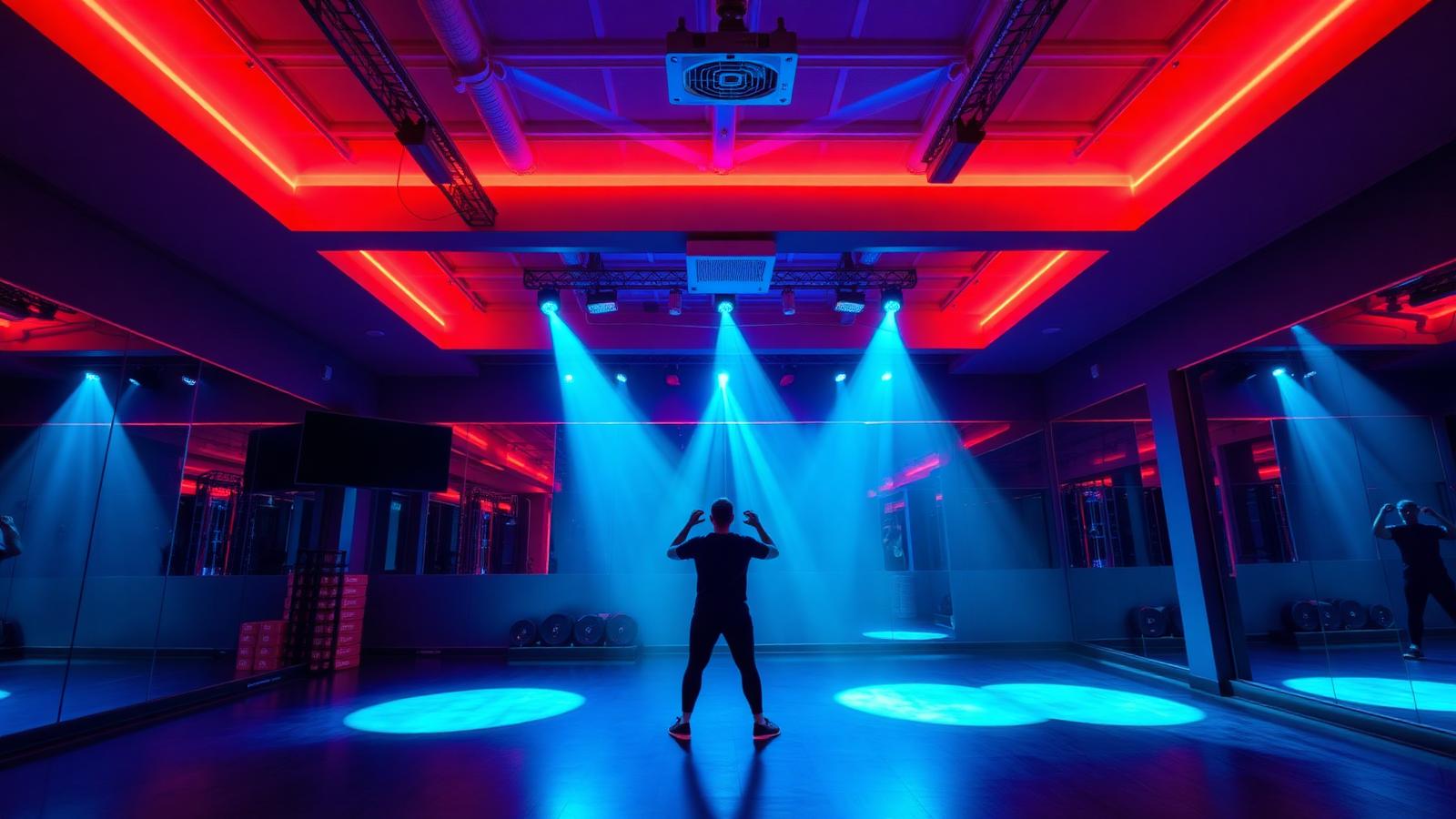

HIIT class studio — DMX-driven RGBW color wash + spotlights, music-synced. The "club workout" experience members will pay 3× for.

2.5 Locker Room & Wet Areas

• Target illuminance: 200 lux floor + 500 lux vertical at vanity mirrors
• CCT: 3000K (warm, spa-like)
• CRI: ≥95 (for skincare, makeup application — the "spa positioning" of premium clubs)
• IP rating: IP44 minimum, IP65 in shower zones

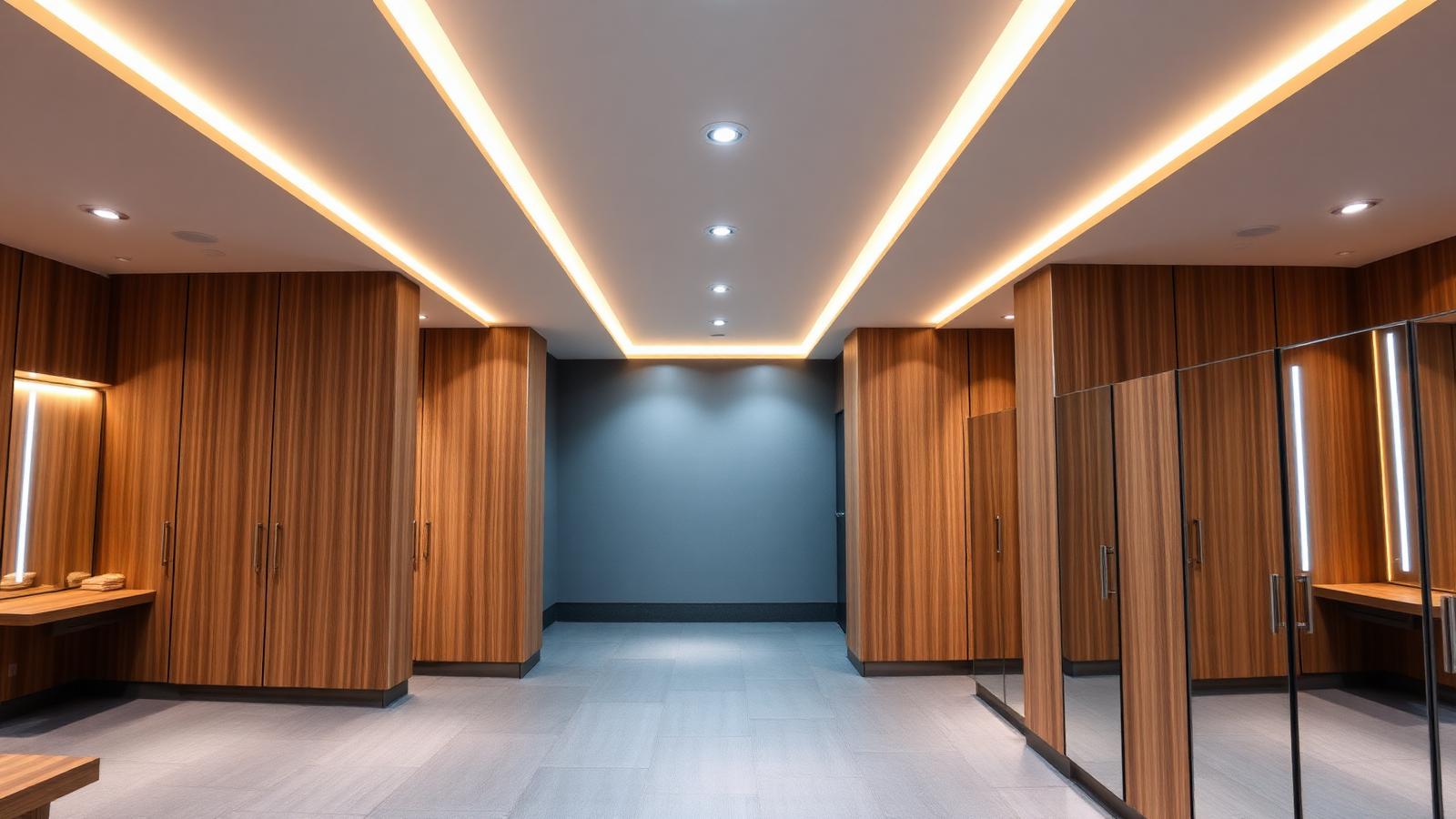

Locker room — 3000K cove + recessed downlights + mirror-integrated LED. Premium spa-like finish that justifies the $200/month membership.

2.6 Indoor Pool / Aquatic

• Target illuminance: 300 lux at water surface (EN 15193 §6.3)
• CCT: 5000K (visibility, color rendering of pool)
• IP rating: IP65 minimum, IP66 for direct splash zone
• Critical: Lensing engineered to eliminate ripple-glare back to lifeguard line of sight (CIBSE LG4)

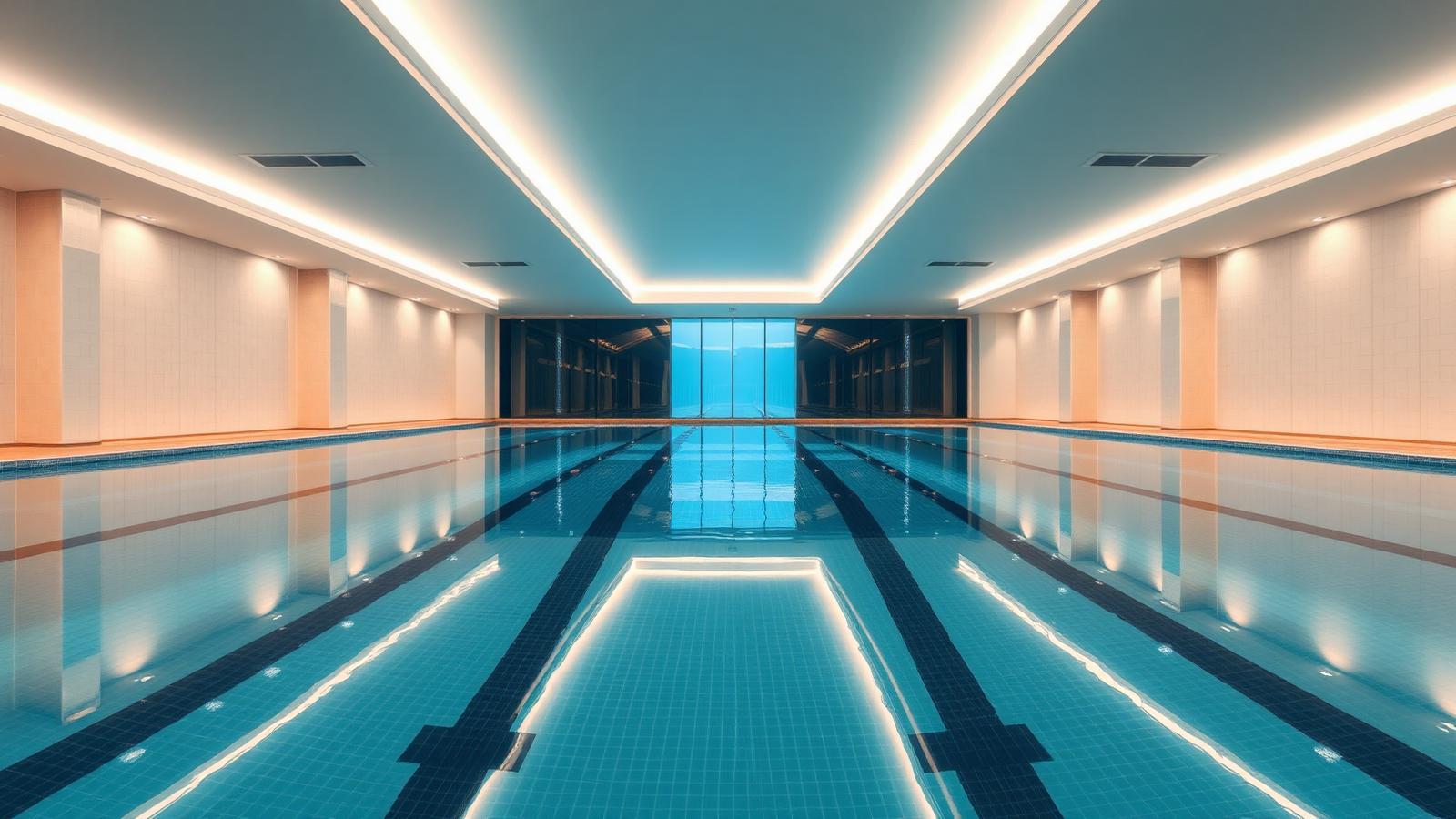

Indoor pool — IP65 perimeter linear LED, lensed to eliminate water-surface glare. Lifeguards see swimmers clearly; members enjoy a clean modern atmosphere.

---

3. Product Matrix: What to Specify (XHLWX Recommendations)

Zone	XHLWX Series	CCT	CRI	UGR	Output	Control
Free weights linear	LX-LIN-SUSP 60W	5000K	85	<22	8400 lm	DALI-2
Cardio recessed	LX-PANEL-AG 40W	4000K	85	<19	5200 lm	DALI-2 + occupancy
Yoga downlight	LX-DL-WARM 9W	2700K	95	<19	800 lm	Casambi DT8
Yoga RGBW wash	LX-RGBW-LIN 24V	RGB+WW	95	—	1500 lm/m	DMX/Casambi
HIIT studio	LX-RGBW-PRO + LX-SPOT	full color	95	—	varies	DMX music-sync
Locker cove	LX-COVE-PRO	3000K	95	—	800 lm/m	DALI-2
Pool IP65 linear	LX-LIN-IP66 36W	5000K	80	—	5400 lm	DALI-2

The 4 European hot-button features XHLWX bakes into every gym SKU:

1. >160 lm/W efficacy — gym connected load drops from 18 W/m² to 7 W/m². For a 2,000 m² 24h club that's €18,000/year saved on UK commercial tariff.
2. CRI ≥85 (≥95 in spa zones) — members' progress photos look honest; locker room reads "premium" not "municipal pool".
3. UGR<22 across the workout floor, <19 in studios — no glare in mirrors during squats, no headache after a 60-minute class.
4. DALI-2 + Casambi + DMX — one fixture line covers BMS-controlled energy management, instructor-controlled scenes, and music-synced theatrical lighting.

---

4. Case Study: A 22-Club Premium European Fitness Chain Refit

In 2025 XHLWX supplied lighting for the rolling refurbishment of a 22-club premium fitness chain in Western Europe.

Before: 6500K T5 high-bay panels, CRI 75, 18 W/m², no scene control, members complained about "morgue lighting" in online reviews. After: Zoned spec — 5000K weights, 4000K cardio, 2700K yoga + RGBW, 3000K locker, IP65 pool. DALI-2 + Casambi gateway, DMX in HIIT studios.

3 quantified outcomes after 12 months:

• Trial-to-membership conversion +28% (in-club tour conversion tracking)
• 12-month retention +9 points (from 62% to 71% — IHRSA defines >70% as "excellent")
• Lighting energy use −61% (verified by smart meter, 7.0 W/m² connected load — eligible for LEED EA credit + BREEAM Excellent)

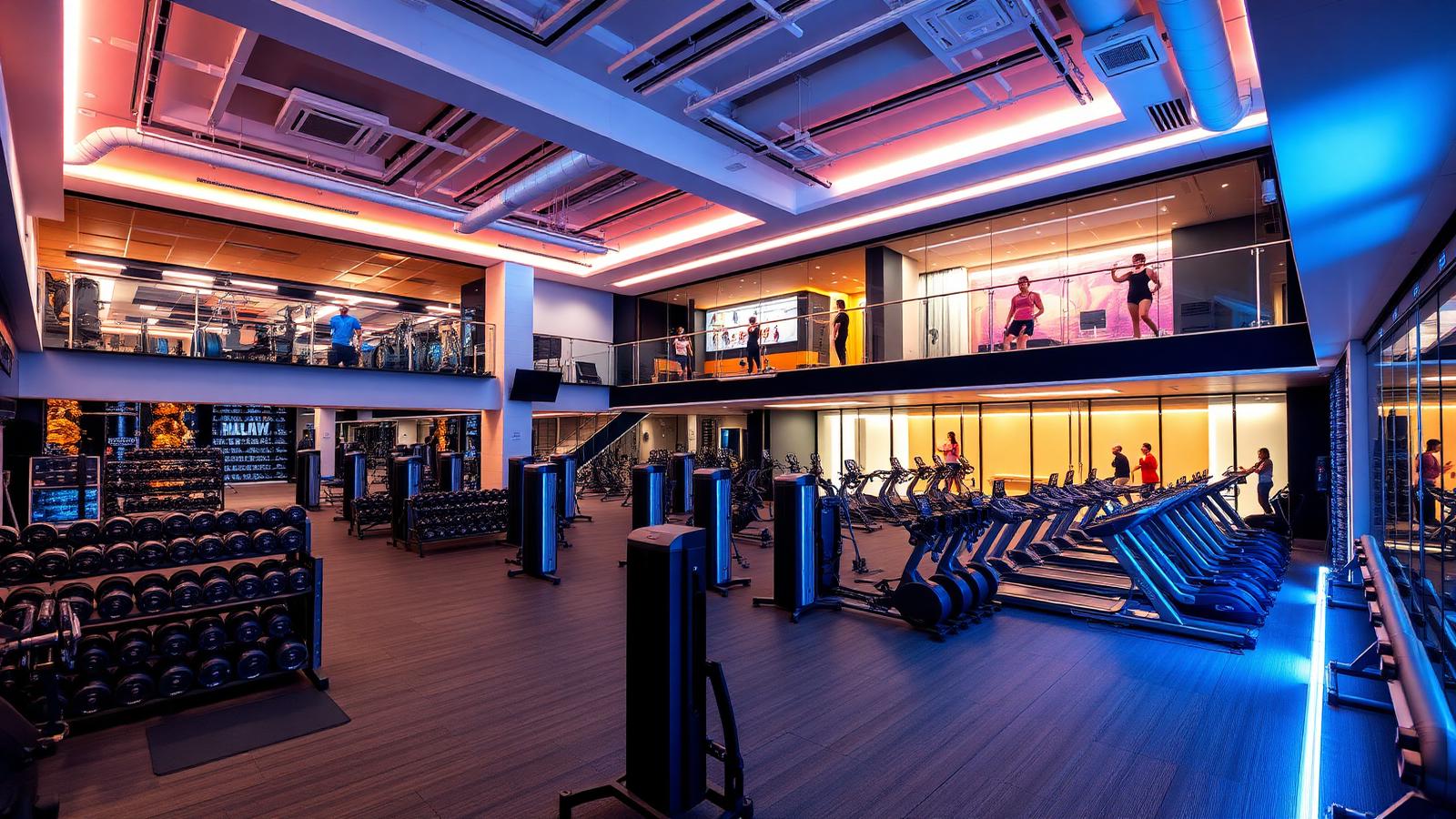

Project completion shot — multi-zone lighting design across weights, cardio, mezzanine yoga, and HIIT studios. The visual differentiation that earns the premium price tag.

---

5. FAQ + Next Step

Q1. Can I really use 2700K in a yoga studio? Won't it feel "too dark"? A. Yes — that's the point. Yoga is a parasympathetic-nervous-system activity. 2700K dim ambient lowers cortisol; 4000K daylight raises it. Use 2700K dimmable + an RGBW wall wash for color scenes.

Q2. Music-synced color lighting — is this gimmicky or actually worth it? A. The boutique HIIT category (Barry's, F45, Orangetheory) charges $35–50 per class largely because of theatrical lighting + sound. If your club competes in this segment, it's a category-table-stakes spec, not a gimmick.

Q3. IP rating for the pool — IP65, IP66, IP67? A. Above pool deck and ceiling: IP65. Direct splash / hose-down zones: IP66. Submerged (in-water): IP68 only. Most pool failures we see in audits are IP54 fixtures spec'd for an IP66 zone — they fail at year 2.

Q4. Flicker in the cardio zone — does it matter? A. Critically. Treadmill / bike screens combined with flickering ambient = motion sickness and headaches. Specify PstLM ≤ 1.0 and SVM ≤ 0.4 (IEEE 1789 + CIE TN 006). XHLWX publishes both on every datasheet.

Q5. How does this hit LEED v4.1 / BREEAM / WELL v2 simultaneously? A. Spec ≥120 lm/W average, daylight harvesting on all storefront-window fixtures, occupancy sensors in toilets/locker rooms, melanopic EDI ≥ 200 in primary work zones (yoga studios qualify under WELL L03). XHLWX provides a one-page tri-standard compliance sheet per project.

---

🎯 Ready to Light Your Fitness Facility?

XHLWX has supplied 310+ fitness facilities including 6 of the top-20 European boutique fitness brands since 2017. Every project includes DIALux/AGI32 simulation, on-site mock-up, 5-year warranty, DMX/Casambi commissioning support.
